Symbol

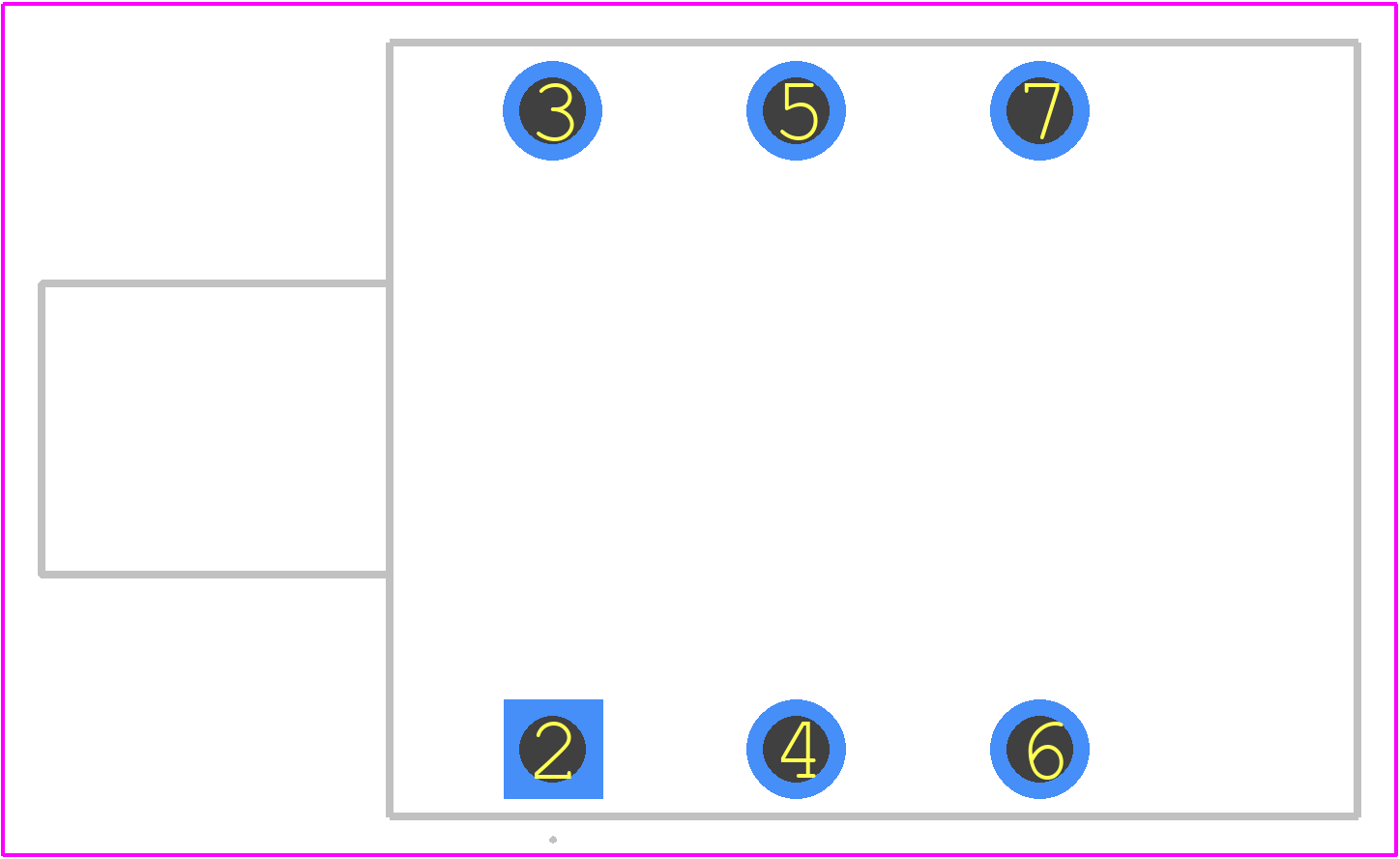

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PJ-609
- Part Number PJ-609
- Manufacturer RVFM
- Pin Count 6
- Part Category Connector
- Package Category Other
- Footprint Name Other - PJ-609-1
- Released Date Dec 22, 2022
- Last Modified Date May 18, 2023 10:57 AM UTC
- Pinout / Pin List Click Here (Member Only)
PJ-609 Details
-
Manufacturer Part Number:
PJ-609
-
Manufacturer:
RVFM (Control Knobs)
Trust Checks
Community Provided
System Verified
Community Approved
PJ-609 Overview
Use the download button to access the PJ-609 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ-60,
or try a keyword search, such as Terminals and Terminal Blocks
