PJ1-021-SMT-TR - Same Sky

Description: 1.65 x 5.15 mm, 5.0 A, Horizontal, Surface Mount (SMT), Dc Power Jack Connector

Download PJ1-021-SMT-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJ1-021-SMT-TR - Same Sky - PCB symbol
click to zoom

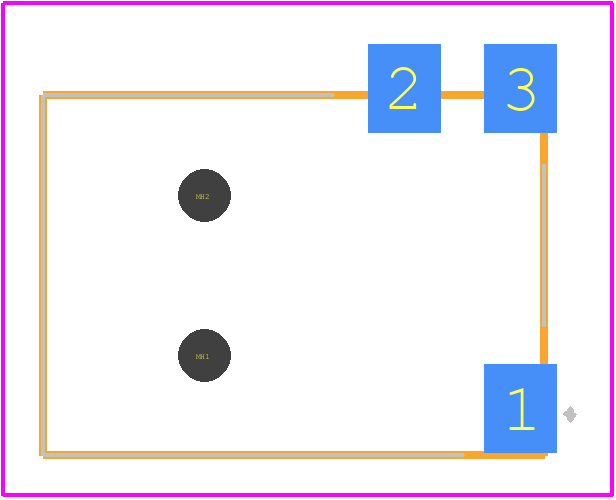

PCB Footprints
PJ1-021-SMT-TR - Same Sky PCB footprint - Other - Other - PJ1-021-SMT-TR-1
click to zoom
3D Models
PJ1-021-SMT-TR - Same Sky - 3D model - Other - PJ1-021-SMT-TR-1
click to zoom

PJ1-021-SMT-TR Details

  • Manufacturer Part Number:

    PJ1-021-SMT-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.25

  • Body Breadth:

    0.236 inch

  • Body Depth:

    0.492 inch

  • Body Length:

    0.354 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Insulator Material:

    POLYAMIDE9T

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR, 15 INCH

  • Pin Diameter:

    1.65 mm

  • Rated Current (Power):

    5 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

PJ1-021-SMT-TR Frequently Asked Questions (FAQs)

  • The recommended land pattern for PJ1-021-SMT-TR is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, PJ1-021-SMT-TR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's performance may degrade at extreme temperatures.
  • Handle the PJ1-021-SMT-TR by the body, avoiding touching the pins or electrical components. Use anti-static wrist straps or mats to prevent electrostatic discharge (ESD) damage.
  • The recommended soldering profile for PJ1-021-SMT-TR is a peak temperature of 240°C, with a dwell time of 30-60 seconds. Avoid exceeding 260°C to prevent damage.
  • Yes, PJ1-021-SMT-TR is designed to withstand vibrations up to 10G. However, it's essential to ensure proper mounting and soldering to prevent mechanical stress.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ1-021-SMT-TR Overview

Use the download button to access the PJ1-021-SMT-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ1-0, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
