PJ1-023 - Same Sky

Description: 0.65 x 2.8 mm, 1.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector

Download PJ1-023 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

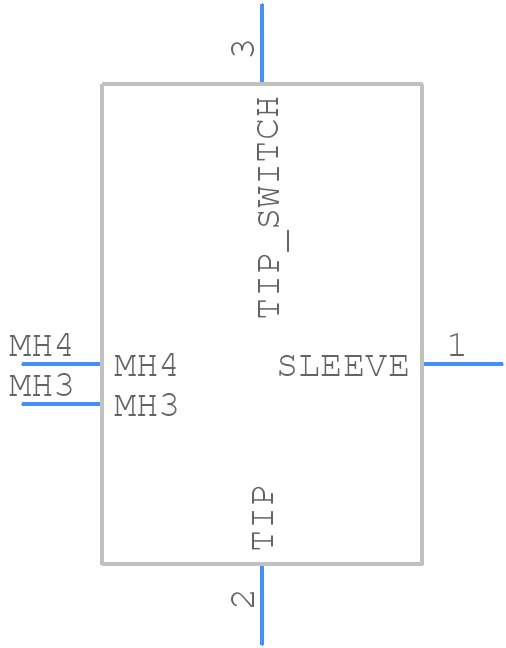

Symbol
PJ1-023 - Same Sky - PCB symbol
click to zoom

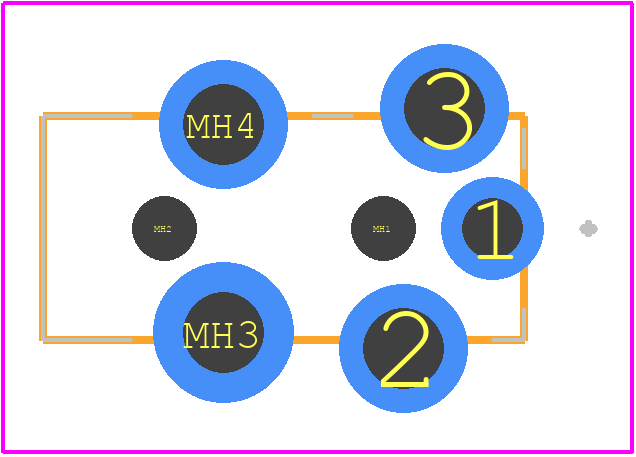

PCB Footprints
PJ1-023 - Same Sky PCB footprint - Other - Other - PJ1-023-2
click to zoom

PJ1-023 Details

  • Manufacturer Part Number:

    PJ1-023

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Same Sky

  • YTEOL:

    0

  • Body Breadth:

    0.205 inch

  • Body Depth:

    0.472 inch

  • Body Length:

    0.228 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    DC POWER JACK

  • Insulator Material:

    POLYAMIDE66

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Pin Diameter:

    0.65 mm

  • Rated Current (Power):

    1 A

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

PJ1-023 Frequently Asked Questions (FAQs)

  • CUI Devices recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2mm clearance around the component is also recommended.
  • PJ1-023 is designed to provide high-frequency noise and EMI filtering. The component's internal layout and shielding help to reduce electromagnetic radiation and susceptibility, ensuring reliable operation in noisy environments.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, CUI Devices recommends derating the component's performance at extreme temperatures. For optimal performance, it's recommended to operate PJ1-023 within a temperature range of 0°C to 70°C.
  • Yes, PJ1-023 is designed to withstand high-vibration and high-shock environments. However, it's essential to follow proper mounting and soldering techniques to ensure the component's reliability and performance in such applications.
  • PJ1-023 meets various safety certifications, including UL, cUL, and CE. However, it's essential to ensure that the component is used within its specified ratings and guidelines to avoid any safety risks or electrical hazards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJ1-023 Overview

Use the download button to access the PJ1-023 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PJ1-0, or try a keyword search, such as DC Power Plugs or Jacks

About Same Sky

Tracing our roots back to 1989 just outside of Portland, Oregon, Same Sky® (formerly CUI Devices) is an electronic components manufacturer dedicated to nurturing the spirit of innovation by caring more than is expected, embracing evolution, taking a holistic approach, and having fun along the away. We specialize in an ever-expanding range of product technologies, including audio, interconnect, motion, relay, sensor, switch and thermal management solutions.
