PJ52916AQW - PANJIT

Description: Load Switches - PJ52916AQW , Number of Channels 1, Input Voltage Min. 0.6V, Input Voltage Max. 5.5V, RDS(on) Typ. 13mΩ, Iq Typ. 28uA , Current Limit Typ. 6A ,Features: Adjustable Sofe-Start,Enable Control,Quick output discharge,OTP ,Operating Temperature Range -40 to 125°C , Package DFN2x2-8

Download PJ52916AQW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

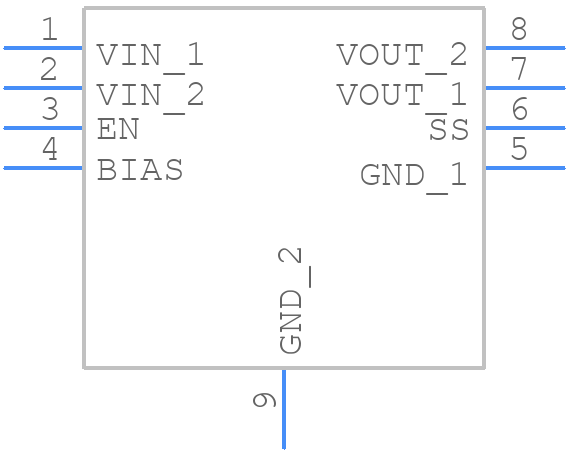

PJ52916AQW - PANJIT - PCB symbol
