PJ85718AM footprint, schematic symbol and 3D model by PANJIT

PJ85718AM - PANJIT

Description: Temperature Sensors - PJ85718AM , Supply Voltage Min. 1.75V, Supply Voltage Max. 5.5V, Average Operating Current Typ. 45uA, Local Sensor Accuracy Max. +1.8/-1.8°C, Remote Sensor Accuracy (Full Temp. Range) +2/-2°C , Number of Remote Channels 1 ,Interface SMBus,2-wire,I2C ,Temp. Resolution Max. 11 bits ,Features: Digital interface compatible with SMBus,2-wire and I2C,11 bit ADC for 0.125°C resolution,Programmable Over/Under Alarm Temperature ,Operating Temperature Range -40 to 125°C ,Package MSOP-8

Download PJ85718AM Model

Schematic
symbols

PCB
footprints

3D
models

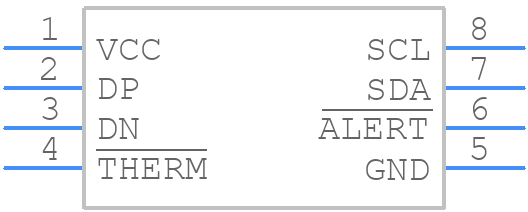

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PJ85718AM
Part Number PJ85718AM
Manufacturer PANJIT
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MSOP-8_2024
Released Date Feb 22, 2024
Last Modified Date Mar 21, 2024 1:51 AM UTC
Pinout / Pin List Click Here (Member Only)

PJ85718AM Details

Manufacturer Part Number:
PJ85718AM
Manufacturer:
PanJit Semiconductor

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PJ85718AM Overview

Use the download button to access the PJ85718AM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PJ857, or try a keyword search, such as Telecom and Datacom Connectors
