PJ85718DM footprint, schematic symbol and 3D model by PANJIT

PJ85718DM - PANJIT

Description: Temperature Sensors - PJ85718DM , Supply Voltage Min. 1.75V, Supply Voltage Max. 5.5V, Average Operating Current Typ. 45uA, Local Sensor Accuracy Max. +1.8/-1.8°C, Remote Sensor Accuracy (Full Temp. Range) +2/-2°C , Number of Remote Channels 1 ,Interface SMBus,2-wire,I2C ,Temp. Resolution Max. 11 bits ,Features: Digital interface compatible with SMBus,2-wire and I2C,11 bit ADC for 0.125°C resolution,Programmable Over/Under Alarm Temperature ,Operating Temperature Range -40 to 125°C ,Package MSOP-8

Download PJ85718DM Model

Schematic
symbols

PCB
footprints

3D
models

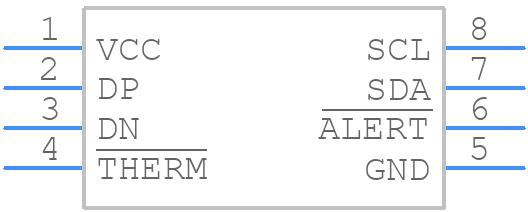

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PJ85718DM
Part Number PJ85718DM
Manufacturer PANJIT
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MSOP-8_2024
Released Date Feb 22, 2024
Last Modified Date Mar 21, 2024 1:59 AM UTC
Pinout / Pin List Click Here (Member Only)

PJ85718DM Details

Manufacturer Part Number:
PJ85718DM
Manufacturer:
PanJit Semiconductor

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PJ85718DM Overview

Use the download button to access the PJ85718DM schematic symbol, PCB footprint, and 3D model.
