PJMF280N65E1_T0_00001 - PANJIT

PJMF280N65E1_T0_00001 Details

• Manufacturer Part Number:

  PJMF280N65E1_T0_00001

• Part Life Cycle Code:

  Active

• Package Description:

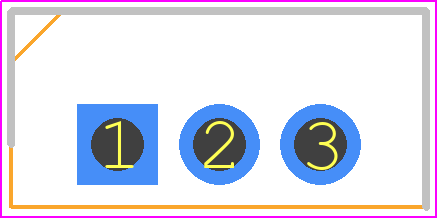

  ITO-220AB-F, 3 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  PanJit Semiconductor

• YTEOL:

  6

• Avalanche Energy Rating (Eas):

  113 mJ

• Case Connection:

  ISOLATED

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  650 V

• Drain Current-Max (ID):

  13.8 A

• Drain-source On Resistance-Max:

  0.28 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  11 pF

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TUBE

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  35.7 W

• Pulsed Drain Current-Max (IDM):

  41.4 A

• Reference Standard:

  IEC-61249; MIL-STD-750

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
