PJRAN1X1U03X - Switchcraft

Description: RCA Phono Connectors 1P RA PH JK RED

Download PJRAN1X1U03X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJRAN1X1U03X - Switchcraft - PCB symbol
click to zoom
PCB Footprints

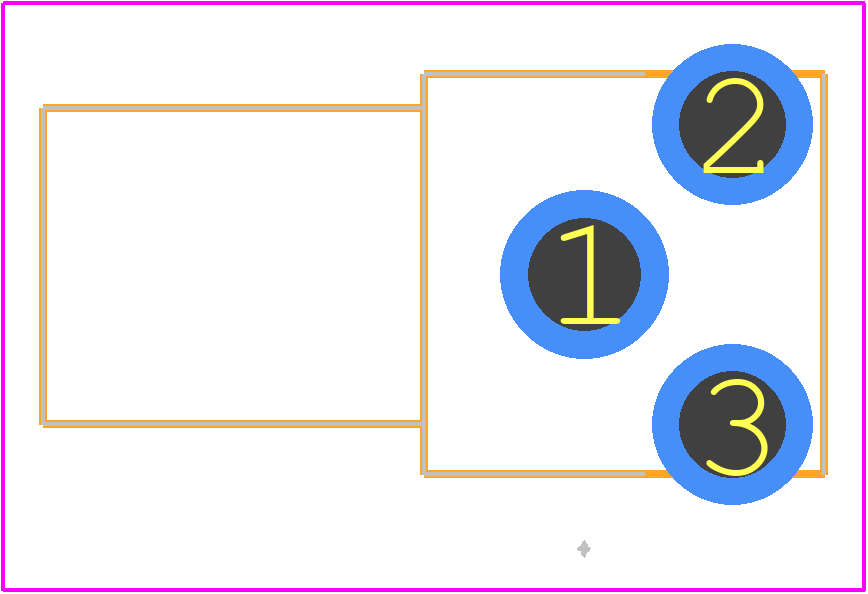

PJRAN1X1U03X - Switchcraft PCB footprint - Other - Other - PJRAN1X1U03X-1
click to zoom
3D Models
PJRAN1X1U03X - Switchcraft - 3D model - Other - PJRAN1X1U03X-1
click to zoom

PJRAN1X1U03X Details

  • Manufacturer Part Number:

    PJRAN1X1U03X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94HB

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NICKEL

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number of Poles:

    1

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

PJRAN1X1U03X Frequently Asked Questions (FAQs)

  • The operating temperature range of the PJRAN1X1U03X is -40°C to 125°C.
  • Yes, the PJRAN1X1U03X is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating of the PJRAN1X1U03X is 1A per contact.
  • Yes, the PJRAN1X1U03X is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • The insulation resistance of the PJRAN1X1U03X is 1000 MΩ minimum at 500 VDC.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJRAN1X1U03X Overview

Use the download button to access the PJRAN1X1U03X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJRAN, or try a keyword search, such as Audio/RCA Connectors
