PJRAN1X1U04AUX - Switchcraft

Description: RCA Phono Connectors 1 POS RA PH JK YEL G

Download PJRAN1X1U04AUX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJRAN1X1U04AUX - Switchcraft - PCB symbol
click to zoom
PCB Footprints

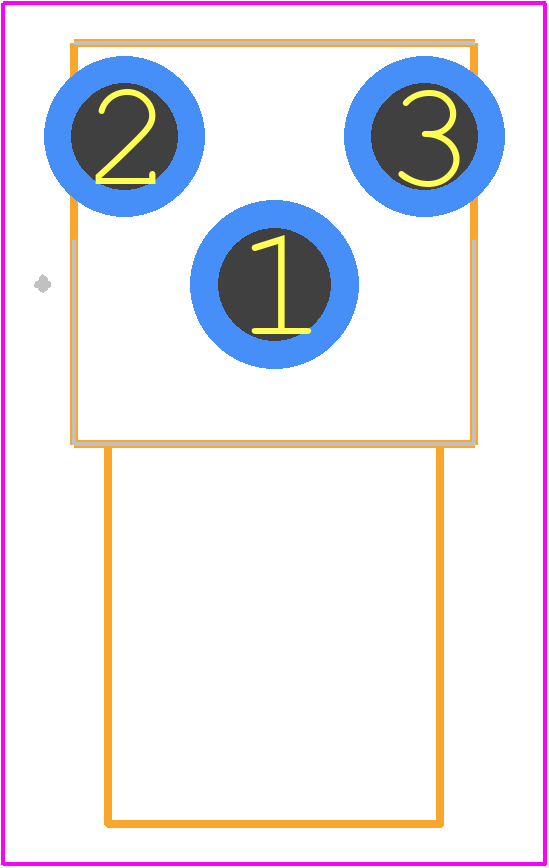

PJRAN1X1U04AUX - Switchcraft PCB footprint - Other - Other - PJRAN1X1U04AUX-3
click to zoom
3D Models
PJRAN1X1U04AUX - Switchcraft - 3D model - Other - PJRAN1X1U04AUX-3
click to zoom

PJRAN1X1U04AUX Details

  • Manufacturer Part Number:

    PJRAN1X1U04AUX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94HB

  • Body/Shell Style:

    JACK

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number of Poles:

    1

  • Number of Ports:

    1

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

PJRAN1X1U04AUX Frequently Asked Questions (FAQs)

  • The operating temperature range for the PJRAN1X1U04AUX is -40°C to 85°C.
  • Yes, the PJRAN1X1U04AUX is RoHS compliant, meeting the requirements of the European Union's Restriction of Hazardous Substances directive.
  • The maximum current rating for the PJRAN1X1U04AUX is 1A per contact.
  • Yes, the PJRAN1X1U04AUX is designed to withstand high-vibration environments, making it suitable choice for applications such as aerospace, defense, and industrial control systems.
  • The typical mating cycle life for the PJRAN1X1U04AUX is 500 cycles minimum.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJRAN1X1U04AUX Overview

Use the download button to access the PJRAN1X1U04AUX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJRAN, or try a keyword search, such as Audio/RCA Connectors
