Part Image

PJRAN2X1U01 - Switchcraft

Description: 2 horizontal by 1 vertical position RCA PCB mount RCA jack, no mounting holes, unshielded, red/ white

Download PJRAN2X1U01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

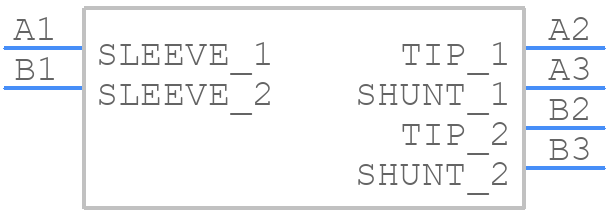

Symbol
PJRAN2X1U01 - Switchcraft - PCB symbol
click to zoom

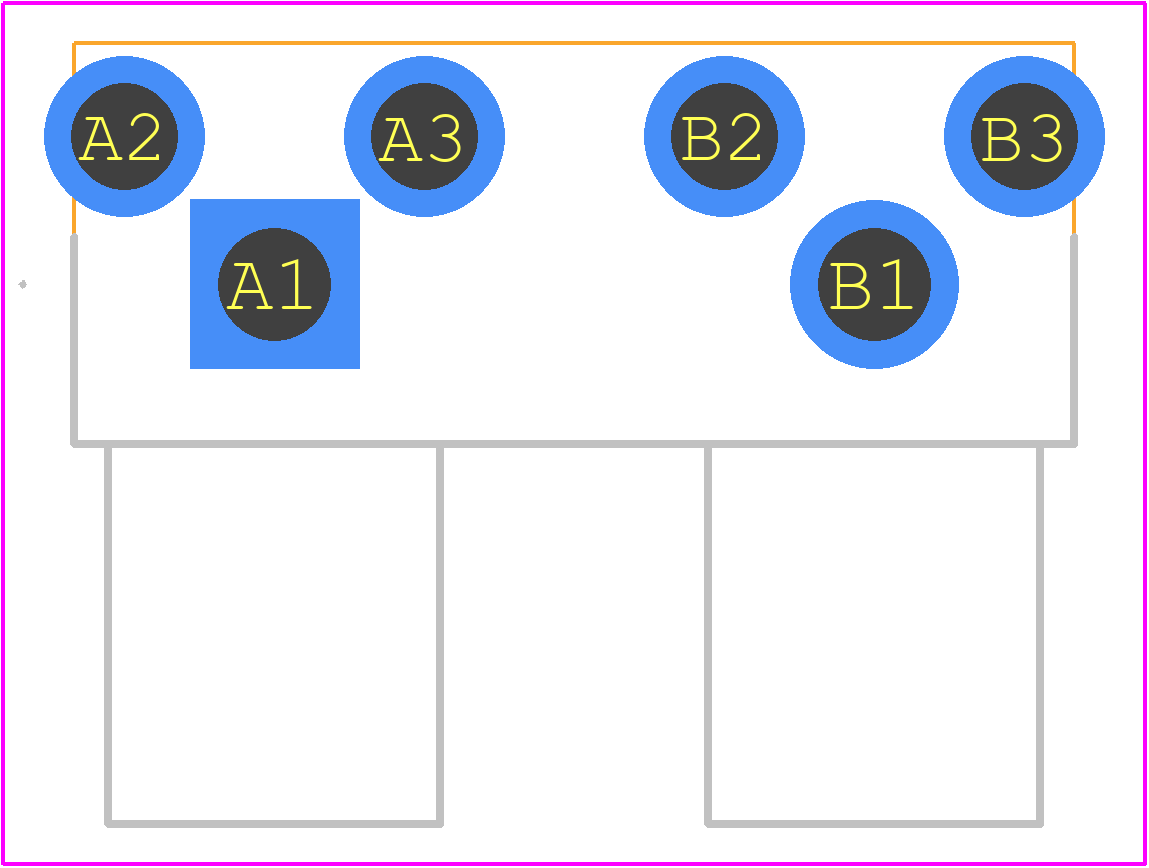

PCB Footprints
PJRAN2X1U01 - Switchcraft PCB footprint - Other - Other - PJRAN2X1U01-4
click to zoom
3D Models
PJRAN2X1U01 - Switchcraft - 3D model - Other - PJRAN2X1U01-4
click to zoom

PJRAN2X1U01 Details

  • Manufacturer Part Number:

    PJRAN2X1U01

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    6

  • Additional Feature:

    LOW PROFILE, 94V-0

  • Audio Type:

    PHONO

  • Body Breadth:

    0.531 inch

  • Body Depth:

    0.768 inch

  • Body Length:

    0.984 inch

  • Body/Shell Style:

    JACK

  • Configuration:

    1X2 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Resistance:

    30 mΩ

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • IEC Conformance:

    NO

  • Insulator Material:

    ACRYLONITRILE BUTADIENE STYRENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number of Poles:

    6

  • Number of Ports:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    2 A

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

PJRAN2X1U01 Frequently Asked Questions (FAQs)

  • The operating temperature range of the PJRAN2X1U01 is -40°C to 125°C.
  • Yes, the PJRAN2X1U01 is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and other rugged applications.
  • The PJRAN2X1U01 has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
  • Yes, the PJRAN2X1U01 is part of the Switchcraft Conxall product family and is designed to be compatible with other products in the series, allowing for easy integration and interchangeability.
  • The typical lead time for delivery of the PJRAN2X1U01 varies depending on the quantity and availability, but it is usually around 6-8 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJRAN2X1U01 Overview

Use the download button to access the PJRAN2X1U01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJRAN, or try a keyword search, such as Audio/RCA Connectors
