PJRAN2X1U01AUX - Switchcraft

Description: RCA Phono Connectors 2 POS RA PH JK R-W G

Download PJRAN2X1U01AUX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

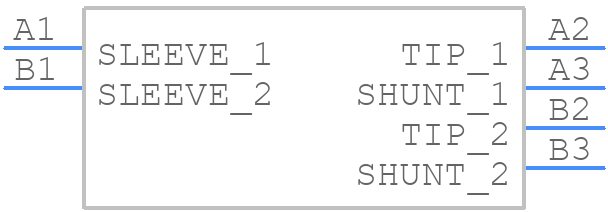

Symbol
PJRAN2X1U01AUX - Switchcraft - PCB symbol
click to zoom

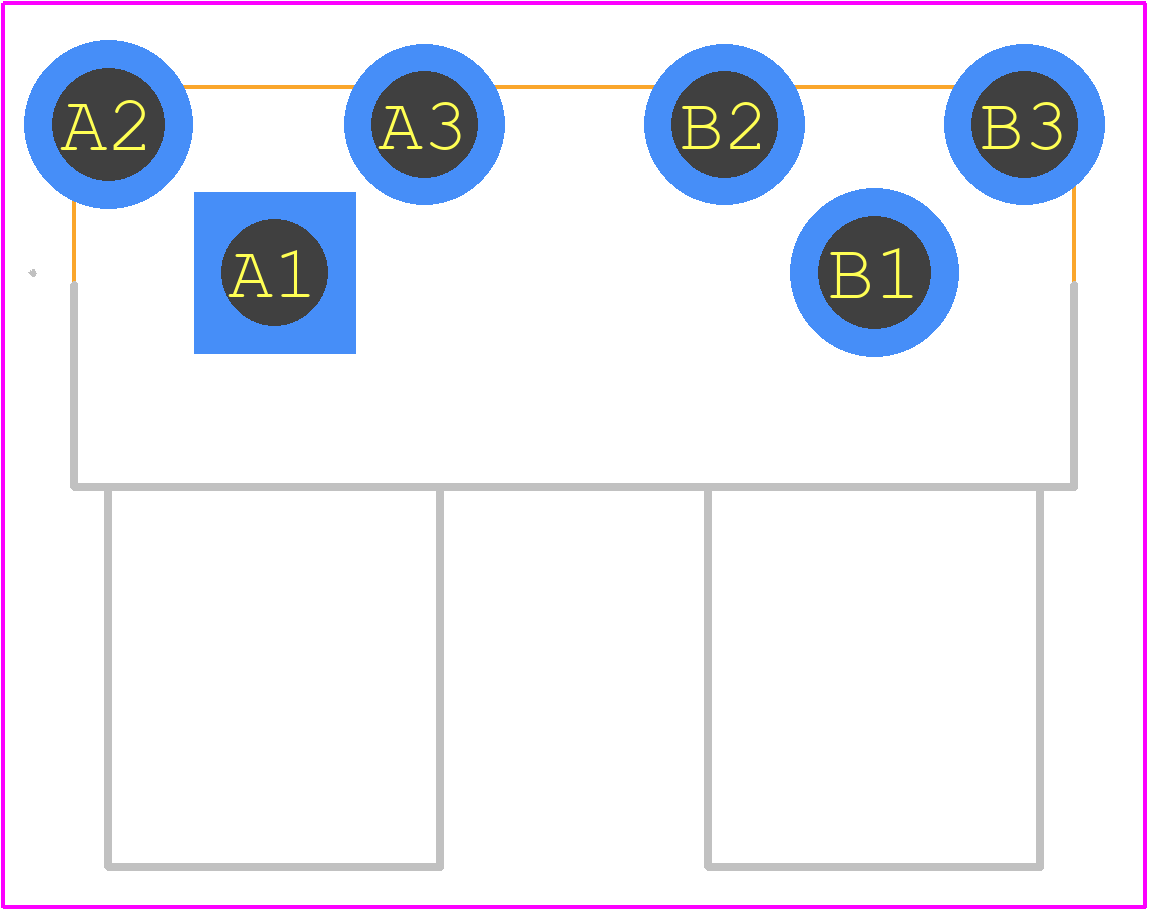

PCB Footprints
PJRAN2X1U01AUX - Switchcraft PCB footprint - Other - Other - PJRAN2X1U01AUX-5_2024
click to zoom
3D Models
PJRAN2X1U01AUX - Switchcraft - 3D model - Other - PJRAN2X1U01AUX-5_2024
click to zoom

PJRAN2X1U01AUX Details

  • Manufacturer Part Number:

    PJRAN2X1U01AUX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    7

  • Body/Shell Style:

    JACK

  • Configuration:

    1X2 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number of Poles:

    2

  • Number of Ports:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

PJRAN2X1U01AUX Frequently Asked Questions (FAQs)

  • The operating temperature range of the PJRAN2X1U01AUX is -40°C to 85°C.
  • Yes, the PJRAN2X1U01AUX is designed to handle high-frequency signals up to 6 GHz.
  • The maximum power rating of the PJRAN2X1U01AUX is 1 watt.
  • Yes, the PJRAN2X1U01AUX is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical insertion loss of the PJRAN2X1U01AUX is less than 0.5 dB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJRAN2X1U01AUX Overview

Use the download button to access the PJRAN2X1U01AUX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PJRAN, or try a keyword search, such as Audio/RCA Connectors
