PJRAS1X2S02X footprint, schematic symbol and 3D model by Switchcraft

Symbol

click to zoom

PCB Footprints

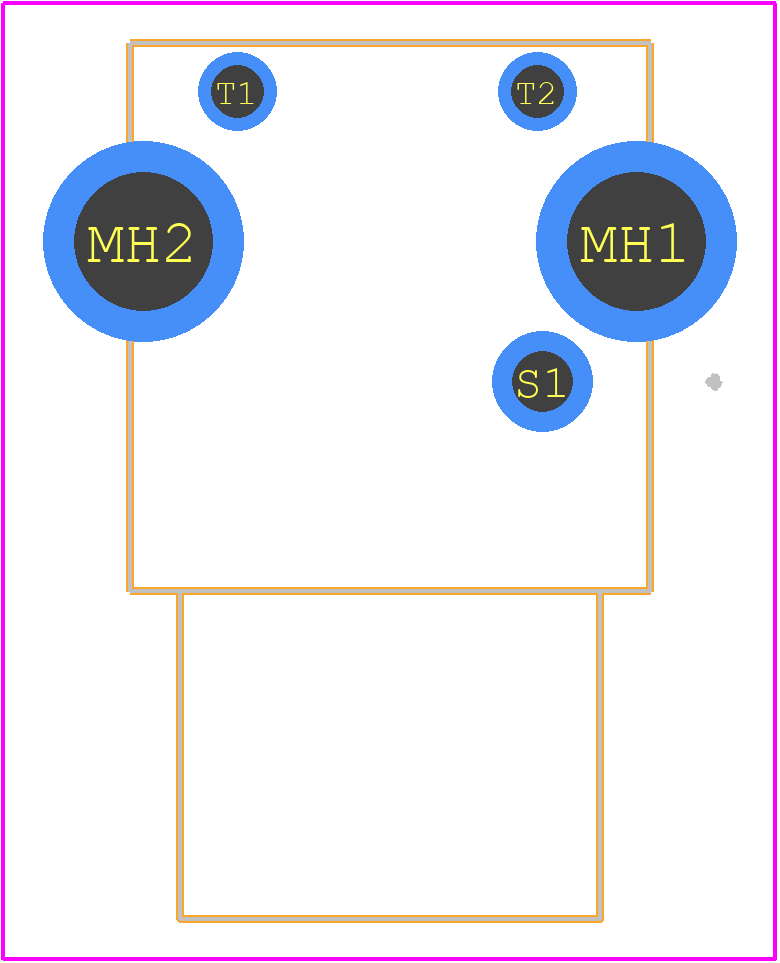

PJRAS1X2S02X - Switchcraft PCB footprint - Other - Other - PJRAS1X2S02X-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PJRAS1X2S02X
Part Number PJRAS1X2S02X
Manufacturer Switchcraft
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - PJRAS1X2S02X-4
Released Date Apr 12, 2020
Last Modified Date May 18, 2023 10:57 AM UTC
Pinout / Pin List Click Here (Member Only)

PJRAS1X2S02X Details

Manufacturer Part Number:
PJRAS1X2S02X
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Switchcraft Conxall
YTEOL:
7
Additional Feature:
STANDARD: 94HB, SHIELDED
Body/Shell Style:
JACK
Configuration:
2X1 HORIZONTAL
Connector Type:
RCA
Contact Finish Mating:
NICKEL
Contact Finish Termination:
NICKEL
DIN Conformance:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mounting Type:
BOARD
Number of Poles:
4
Number of Ports:
2
Option:
GENERAL PURPOSE
Termination Type:
SOLDER

PJRAS1X2S02X Frequently Asked Questions (FAQs)

The recommended torque for the PJRAS1X2S02X connectors is 10-12 in-lbs (1.1-1.4 Nm).
Yes, the PJRAS1X2S02X connectors are designed for outdoor use and can withstand harsh environmental conditions, including moisture and extreme temperatures.
The PJRAS1X2S02X connectors are designed to operate up to 6 GHz, making them suitable for high-frequency applications.
Yes, the PJRAS1X2S02X connectors are designed to withstand high-vibration environments and are suitable for use in applications such as aerospace, defense, and industrial control systems.
The PJRAS1X2S02X connectors are designed to be compatible with other Switchcraft Conxall connector systems, but compatibility with other manufacturers' systems may vary.

Trust Checks

Expert Contribution

System Verified

Community Approved

PJRAS1X2S02X Overview

Use the download button to access the PJRAS1X2S02X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PJRAS, or try a keyword search, such as Audio/RCA Connectors
