PJRAS2X1S01AUX footprint, schematic symbol and 3D model by Switchcraft

Symbol

click to zoom

PCB Footprints

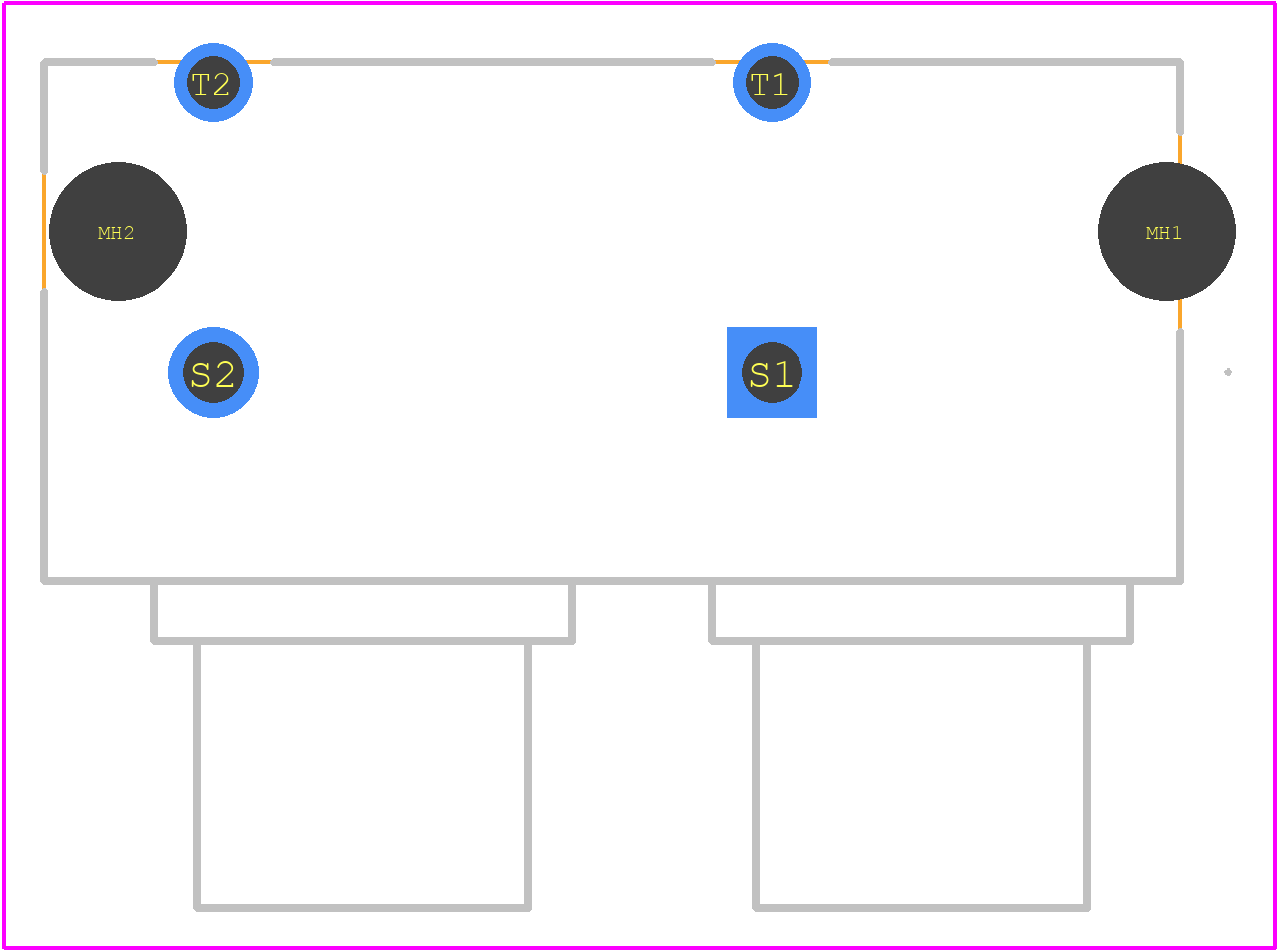

PJRAS2X1S01AUX - Switchcraft PCB footprint - Other - Other - PJRAS2X1S01AUX-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PJRAS2X1S01AUX
Part Number PJRAS2X1S01AUX
Manufacturer Switchcraft
Pin Count 4
Part Category Connector
Package Category Other
Footprint Name Other - PJRAS2X1S01AUX-2
Released Date Feb 19, 2026
Last Modified Date Feb 19, 2026 1:01 PM UTC
Pinout / Pin List Click Here (Member Only)

PJRAS2X1S01AUX Details

Manufacturer Part Number:
PJRAS2X1S01AUX
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Switchcraft Conxall
YTEOL:
7
Body/Shell Style:
JACK
Configuration:
1X2 HORIZONTAL
Connector Type:
RCA
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
GOLD
DIN Conformance:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mounting Type:
BOARD
Number of Poles:
2
Number of Ports:
2
Option:
GENERAL PURPOSE
Termination Type:
SOLDER

PJRAS2X1S01AUX Frequently Asked Questions (FAQs)

The operating temperature range of the PJRAS2X1S01AUX is -40°C to 85°C.
Yes, the PJRAS2X1S01AUX is designed to handle high-frequency signals up to 6 GHz.
The insertion loss of the PJRAS2X1S01AUX is typically less than 1 dB at 1 GHz.
Yes, the PJRAS2X1S01AUX is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The maximum power rating of the PJRAS2X1S01AUX is 1 watt.

Trust Checks

Community Provided

System Verified

Community Approved

PJRAS2X1S01AUX Overview

Use the download button to access the PJRAS2X1S01AUX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PJRAS, or try a keyword search, such as Audio/RCA Connectors
