PJRAS2X2S01X footprint, schematic symbol and 3D model by Switchcraft

Symbol

click to zoom

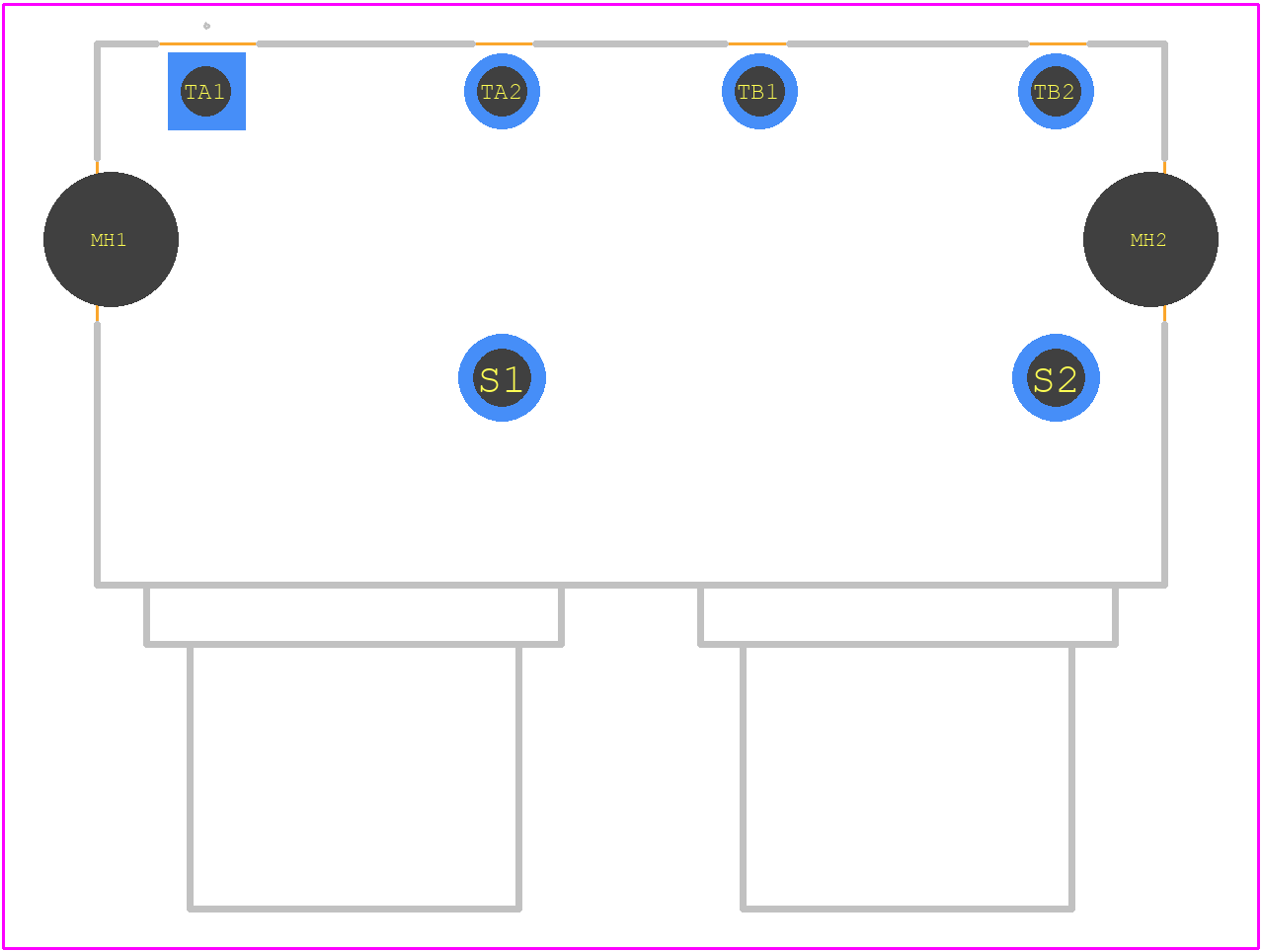

PCB Footprints

PJRAS2X2S01X - Switchcraft PCB footprint - Other - Other - PJRAS2X2S01X-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PJRAS2X2S01X
Part Number PJRAS2X2S01X
Manufacturer Switchcraft
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - PJRAS2X2S01X-1
Released Date Jul 3, 2018
Last Modified Date Oct 23, 2025 12:46 PM UTC
Pinout / Pin List Click Here (Member Only)

PJRAS2X2S01X Details

Manufacturer Part Number:
PJRAS2X2S01X
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Switchcraft Conxall
YTEOL:
7
Body/Shell Style:
JACK
Configuration:
2X2 HORIZONTAL
Connector Type:
RCA
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NICKEL
DIN Conformance:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mounting Type:
BOARD
Number of Poles:
4
Number of Ports:
4
Option:
GENERAL PURPOSE
Termination Type:
SOLDER

PJRAS2X2S01X Frequently Asked Questions (FAQs)

The operating temperature range of the PJRAS2X2S01X is -40°C to 85°C.
Yes, the PJRAS2X2S01X is designed to handle high-frequency signals up to 6 GHz.
The insertion loss of the PJRAS2X2S01X is typically less than 1 dB at 1 GHz.
Yes, the PJRAS2X2S01X is designed to withstand harsh environments, including vibration, shock, and humidity.
Yes, the PJRAS2X2S01X is RoHS (Restriction of Hazardous Substances) compliant.

Trust Checks

Community Provided

System Verified

Community Approved

PJRAS2X2S01X Overview

Use the download button to access the PJRAS2X2S01X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PJRAS, or try a keyword search, such as Audio/RCA Connectors
