PJRAS4X2U01AUX - Switchcraft

Description: 3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder

Download PJRAS4X2U01AUX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PJRAS4X2U01AUX - Switchcraft - PCB symbol
click to zoom
PCB Footprints

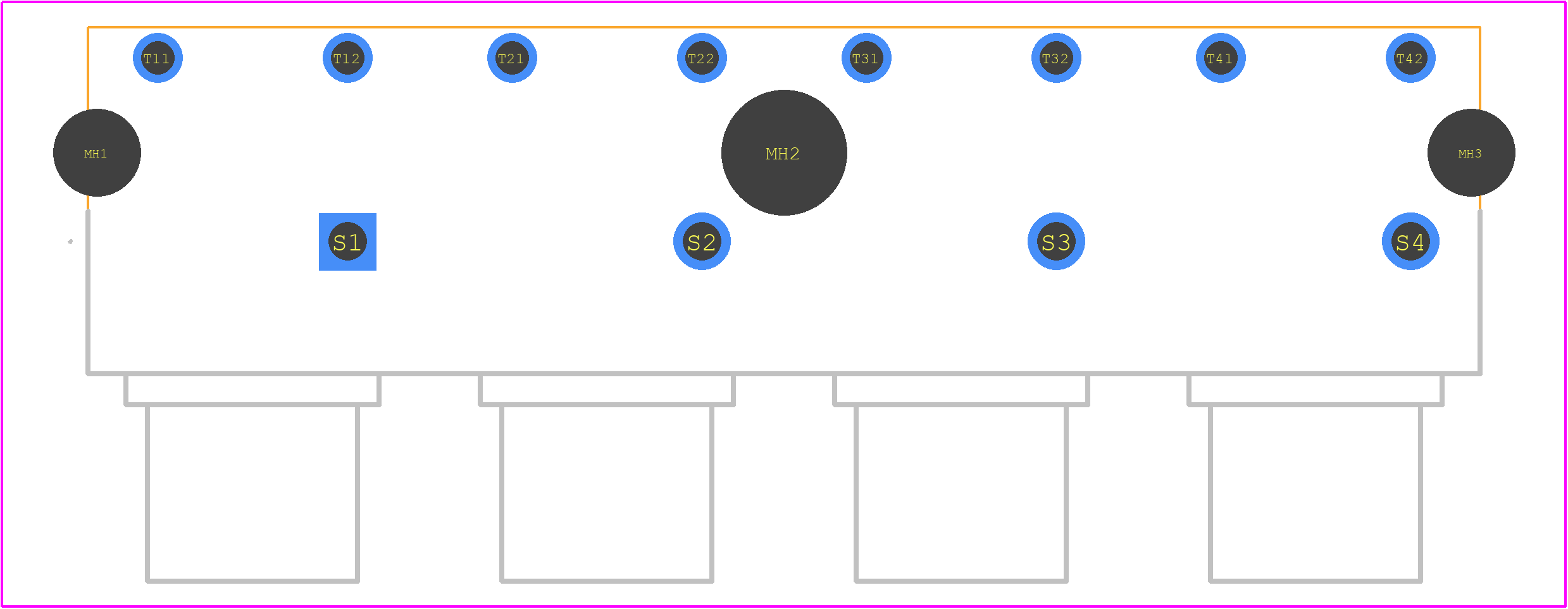

PJRAS4X2U01AUX - Switchcraft PCB footprint - Other - Other - PJRAS4X2U01AUX-4
click to zoom
3D Models
PJRAS4X2U01AUX - Switchcraft - 3D model - Other - PJRAS4X2U01AUX-4
click to zoom

PJRAS4X2U01AUX Details

  • Manufacturer Part Number:

    PJRAS4X2U01AUX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Switchcraft Conxall

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: 94V-HB

  • Body/Shell Style:

    JACK

  • Configuration:

    2X4 HORIZONTAL

  • Connector Type:

    RCA

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mounting Type:

    BOARD

  • Number of Poles:

    12

  • Number of Ports:

    8

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

PJRAS4X2U01AUX Frequently Asked Questions (FAQs)

  • The operating temperature range of PJRAS4X2U01AUX is -40°C to 85°C.
  • Yes, PJRAS4X2U01AUX is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating of PJRAS4X2U01AUX is 1A per contact.
  • Yes, PJRAS4X2U01AUX is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, industrial, and transportation.
  • Yes, PJRAS4X2U01AUX is designed to operate in harsh environments, including high-temperature, high-humidity, and high-vibration conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PJRAS4X2U01AUX Overview

Use the download button to access the PJRAS4X2U01AUX schematic symbol, PCB footprint, and 3D model.
