The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing thermal vias under the IC. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 125°C.
To ensure EMC, use a shielded enclosure, keep the input and output cables away from each other, and use ferrite beads or common-mode chokes on the input and output lines. Additionally, follow the recommended PCB layout and grounding scheme.
The maximum allowed voltage deviation on the input pins is ±10% of the nominal input voltage. Exceeding this limit may affect the IC's performance or even cause damage.
To troubleshoot issues, check the input voltage, output load, and PCB layout. Verify that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout follows the recommended guidelines. Use an oscilloscope to monitor the output voltage and current, and a thermal camera to check for hotspots.
The PKE3313PI is a commercial-grade IC, and its use in high-reliability or safety-critical applications may require additional testing, validation, and certification. It's recommended to consult with Flex Ltd or a qualified reliability engineer to determine the IC's suitability for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PKE3313PI Overview

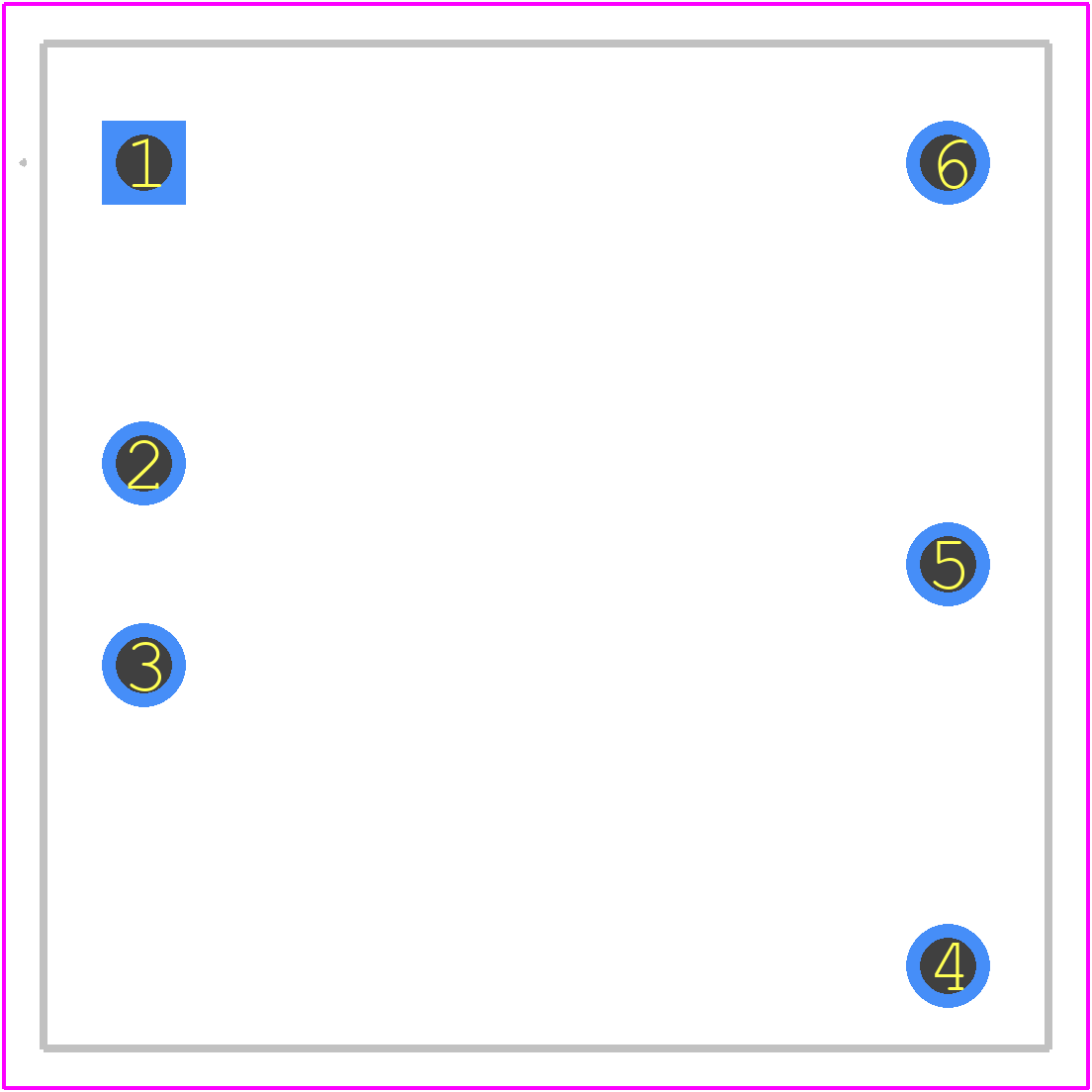

Use the download button to access the PKE3313PI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PKE33,
or try a keyword search, such as Power Supply Modules
