- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PKR2111ASI
- Part Number PKR2111ASI
- Manufacturer Flex Power Modules
- Pin Count 18
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - PKR2111ASI
- Released Date Jul 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PKR2111ASI Details
-
Manufacturer Part Number:
PKR2111ASI
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
Module-18
-
ECCN Code:
EAR99
-
Factory Lead Time:
18 Weeks
-
Manufacturer:
Flex Ltd
-
YTEOL:
6
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
-
Input Voltage-Max:
36 V
-
Input Voltage-Min:
18 V
PKR2111ASI Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power and ground planes as close as possible to minimize inductance.
-
Use a reliable communication protocol like SPI or I2C, and ensure proper signal termination and noise filtering. Also, consider using a buffer or repeater if the distance between the devices is significant.
-
The PKR2111ASI is rated for operation from -40°C to 85°C. However, it's essential to consider the specific application and potential thermal gradients when designing the system.
-
Use proper shielding, grounding, and filtering techniques to minimize EMI. Ensure the system meets relevant EMC standards, such as CISPR 22 and FCC Part 15.
-
The PKR2111ASI requires a specific power-up sequence to ensure proper operation. Consult the datasheet and application notes for detailed information on power sequencing and reset timing.
Trust Checks
Expert Contribution
System Verified
Community Approved
PKR2111ASI Overview

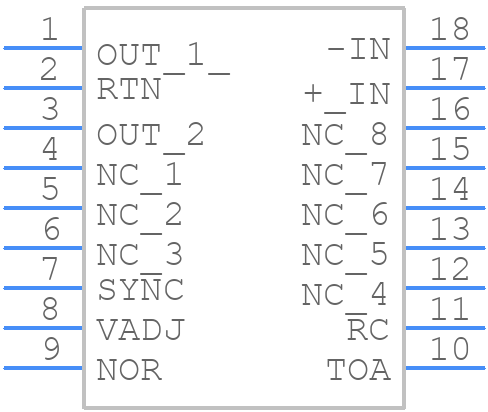

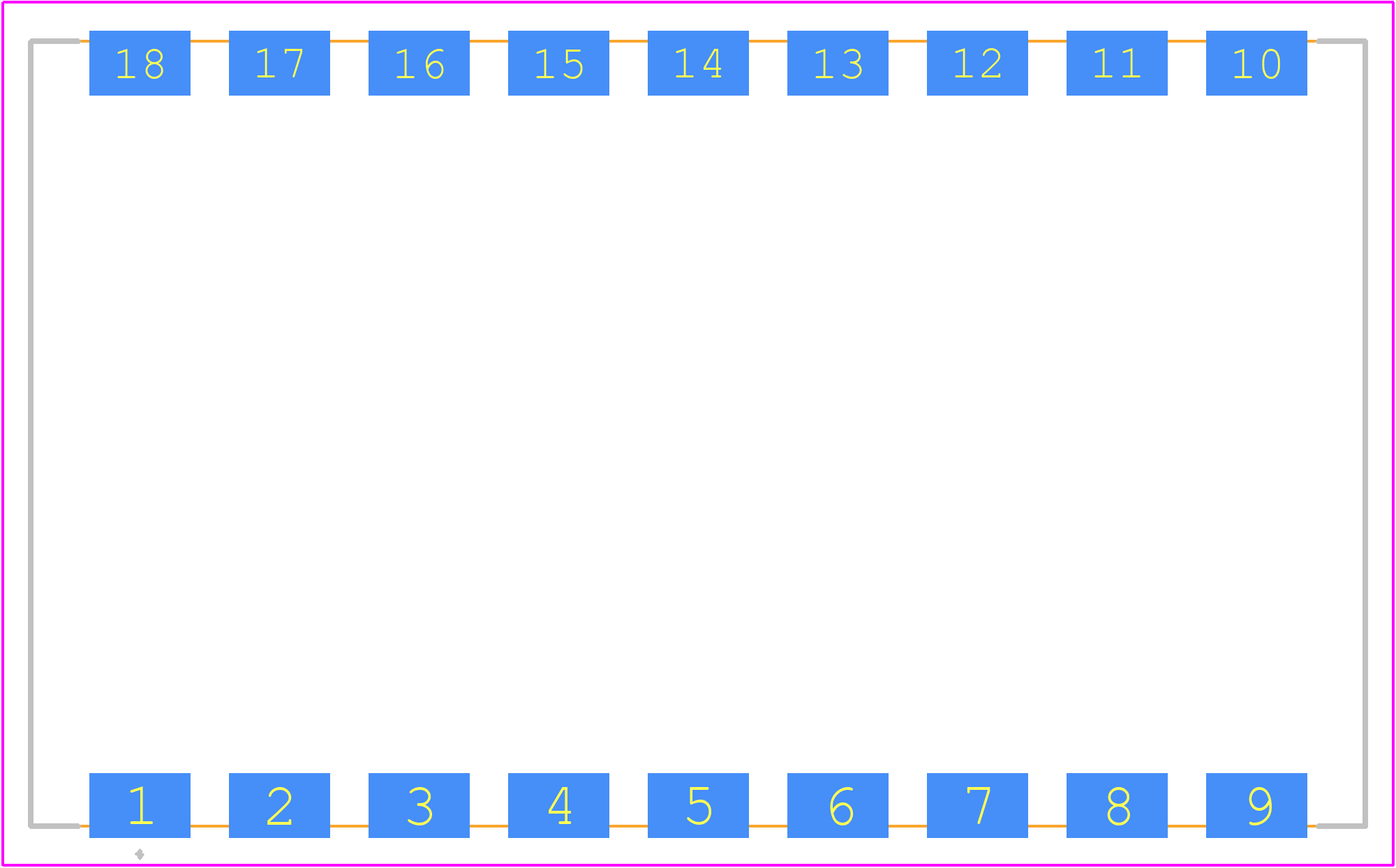

Use the download button to access the PKR2111ASI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PKR21,
or try a keyword search, such as Power Supply Modules
