A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power and ground planes as close as possible to minimize inductance.
Use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K between the PKR2113ASI and the heat sink. Ensure the heat sink is properly attached and has a sufficient surface area.
The maximum allowed voltage on the input pins is 5.5V. Exceeding this voltage may cause permanent damage to the device.
Yes, but ensure the device is properly sealed and conformal coated to prevent moisture ingress. Follow the recommended storage and handling procedures to prevent damage.
Use a logic analyzer or oscilloscope to monitor the input and output signals. Check the power supply voltage, decoupling capacitors, and PCB layout for any issues. Consult the datasheet and application notes for troubleshooting guides.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PKR2113ASI Overview

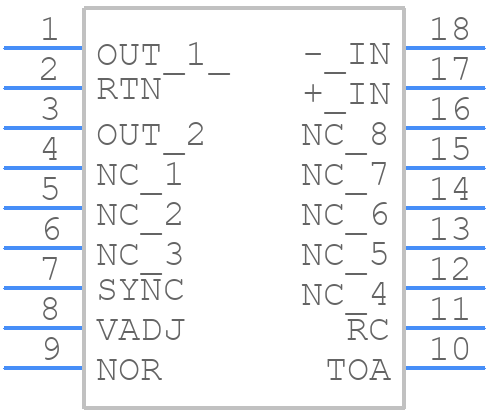

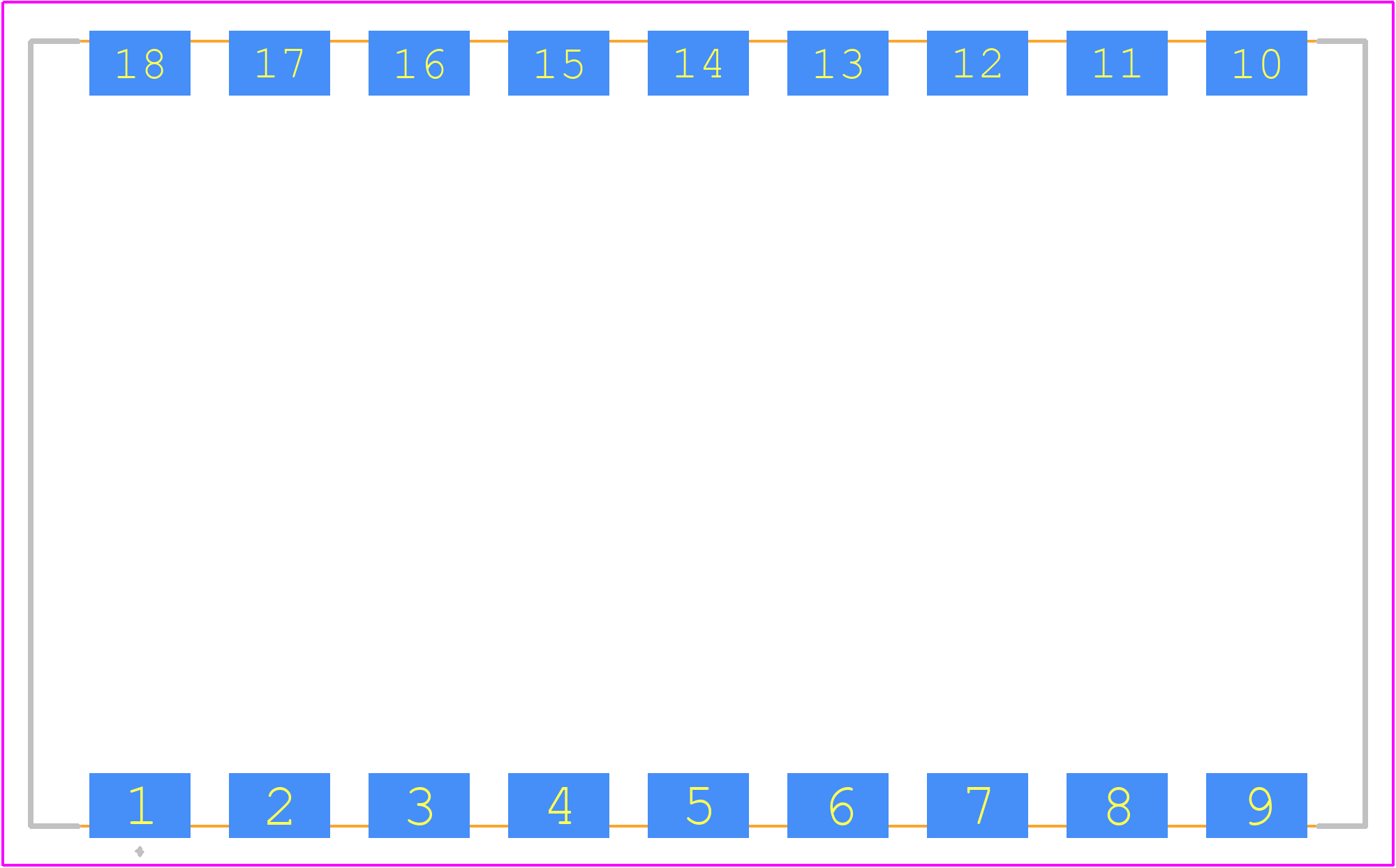

Use the download button to access the PKR2113ASI schematic symbol and PCB footprint.
