OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.03535 Vrms
Screening Level:
IEC/EN/UL 62368-1
Seated Height-Max:
10.42 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
50 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.004 s
Width:
25 mm
PKU3511SPI Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the PKU3511SPI away from high-frequency components, using a solid ground plane, and ensuring good thermal conductivity. For thermal management, a heat sink or thermal pad is recommended, and the device should be mounted on a multi-layer PCB with a thermal via to dissipate heat effectively.
To troubleshoot SPI interface issues, check the clock frequency, polarity, and phase settings. Ensure the slave select signal is properly configured and the data transmission is synchronized with the clock signal. Also, verify the correct pin connections and signal integrity.
The maximum operating temperature range for the PKU3511SPI is -40°C to 125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
Yes, the PKU3511SPI is designed to withstand high-vibration environments. However, it's essential to ensure the device is properly mounted and secured to the PCB using a suitable mechanical fastening method to prevent damage or dislodging.
To mitigate EMI, use a shielded enclosure, and ensure the PCB is designed with EMI in mind. Use decoupling capacitors, and consider adding EMI filters or ferrite beads to the power supply lines. Additionally, ensure the device is properly grounded and the signal lines are routed away from noise sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PKU3511SPI Overview

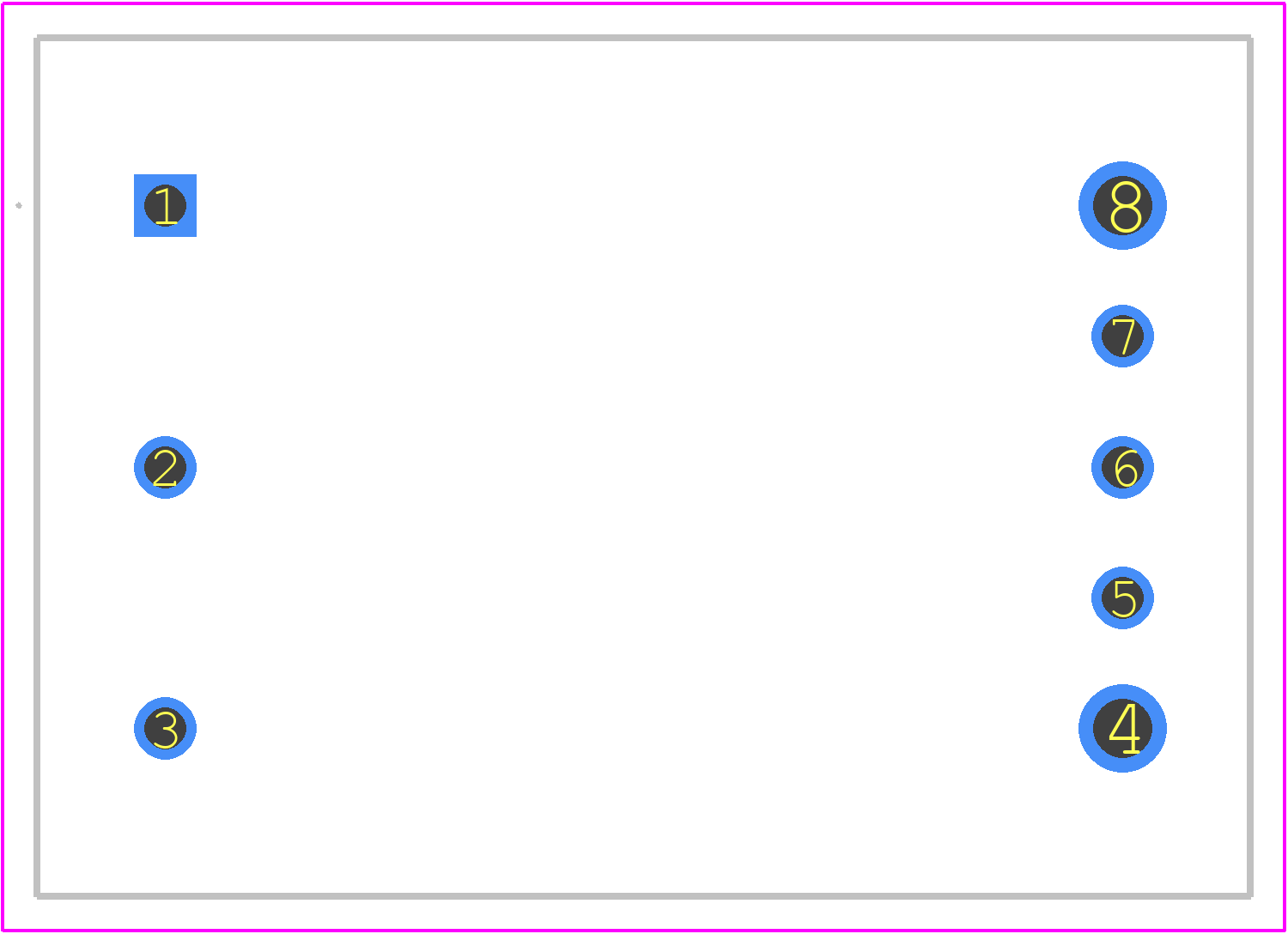

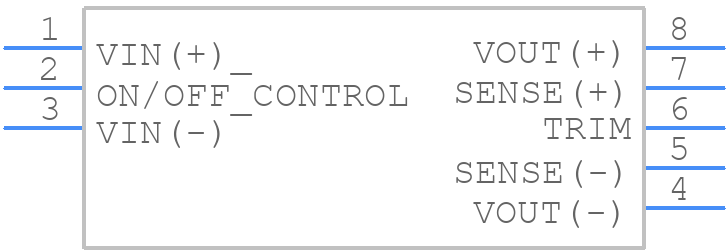

Use the download button to access the PKU3511SPI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PKU35,
or try a keyword search, such as Power Supply Modules
