The recommended PCB layout involves keeping the PKU5311EPI away from high-current paths and heat sources. A thermal pad on the bottom of the package should be connected to a solid ground plane to dissipate heat. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using thermal protection devices, such as thermistors or thermal fuses, to prevent overheating.
The PKU5311EPI has built-in ESD protection, but it's still crucial to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
While the PKU5311EPI is designed to be robust, it's essential to follow the recommended mounting and soldering procedures to ensure reliable operation in high-vibration or high-shock environments. Additional mechanical support or potting may be necessary in extreme cases.
Troubleshooting and debugging involve using a systematic approach, including reviewing the datasheet, checking the PCB layout and assembly, and using diagnostic tools such as oscilloscopes and logic analyzers. Flex Ltd also provides application notes and technical support resources to aid in the debugging process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PKU5311EPI Overview

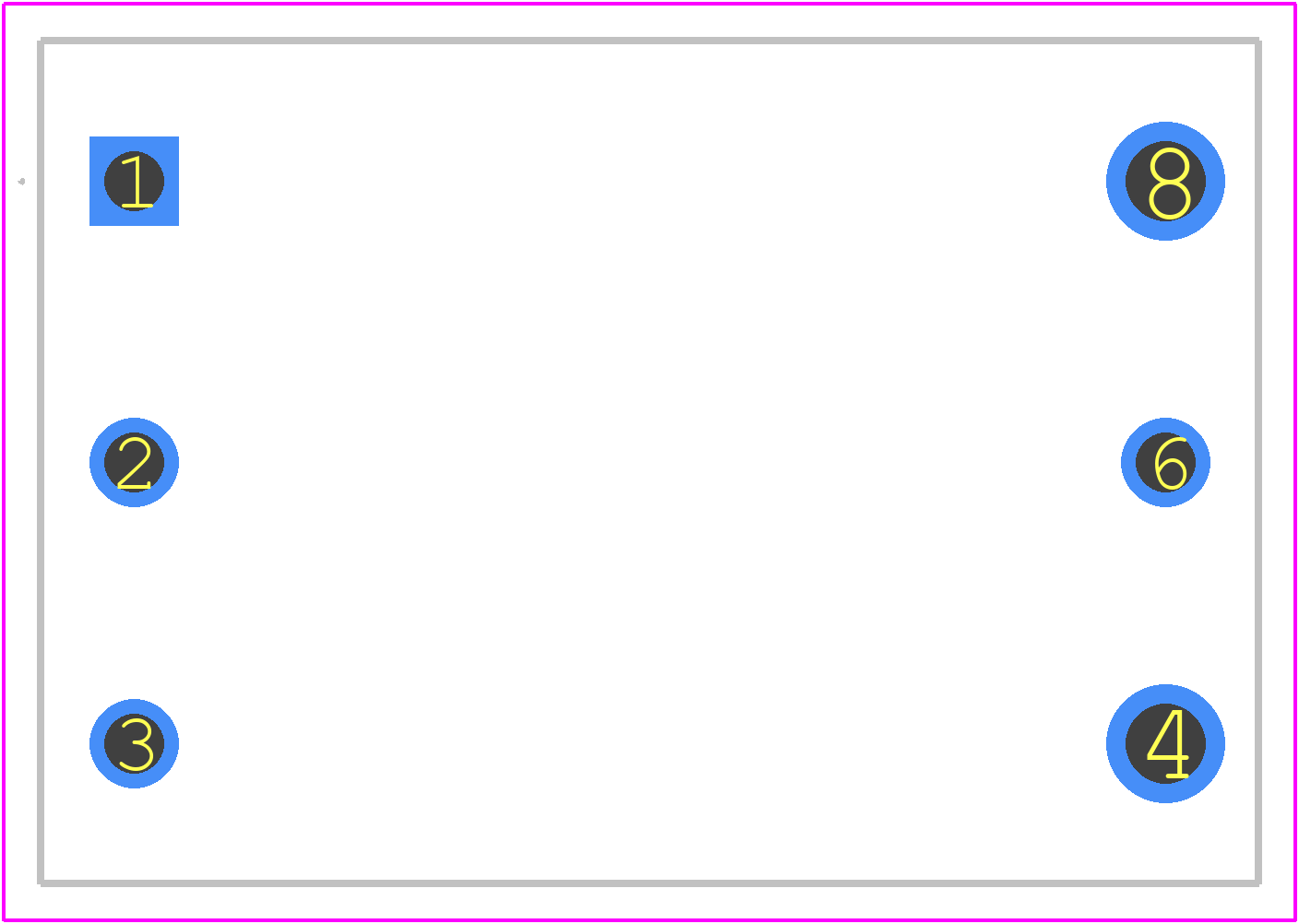

Use the download button to access the PKU5311EPI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PKU53,
or try a keyword search, such as Power Supply Modules
