Part Image

PKU5511SPI - Flex

Description: Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input 50 W 2.25 kV 90% -40°C ~ 100°C

Download PKU5511SPI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

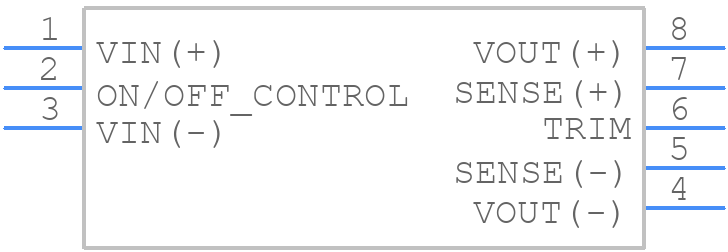

PKU5511SPI - Flex - PCB symbol
click to zoom
PCB Footprints

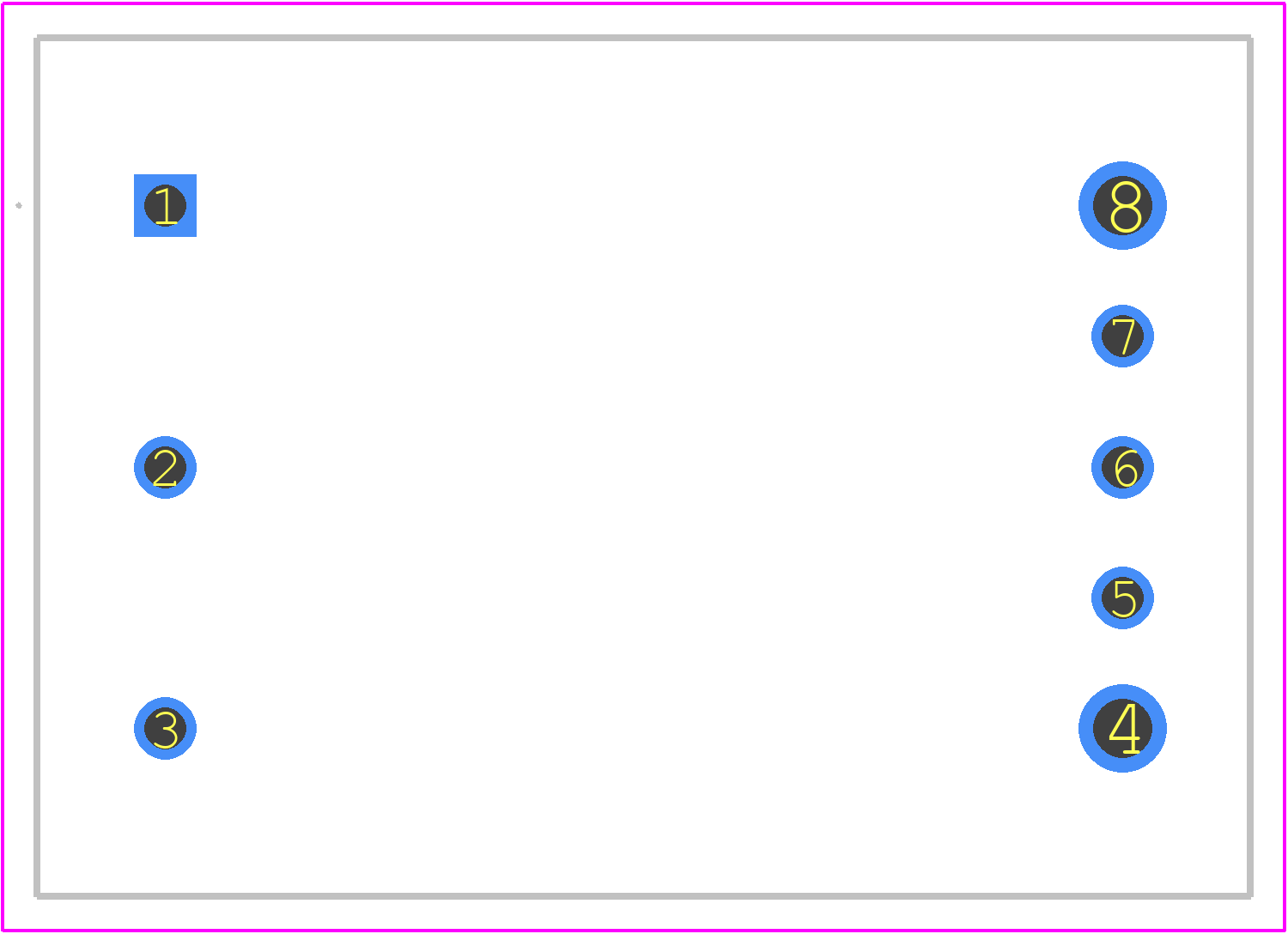

PKU5511SPI - Flex PCB footprint - Other - Other - 25 X 35.3 X 10.4mm
click to zoom
3D Models
PKU5511SPI - Flex - 3D model - Other - 25 X 35.3 X 10.4mm
click to zoom

PKU5511SPI Details

  • Manufacturer Part Number:

    PKU5511SPI

  • Manufacturer:

    FLEX

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PKU5511SPI Overview

Use the download button to access the PKU5511SPI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PKU55, or try a keyword search, such as Power Supply Modules
