Tamura recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a thermal via to ensure efficient heat dissipation. A minimum of 2oz copper thickness is recommended.
The PL10-16-130B has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. The OVP threshold is typically set at 16.5V, and the OCP threshold is typically set at 1.5A. However, these values can be customized upon request.
The PL10-16-130B is rated for operation from -40°C to 125°C, with a derating of 1.5A/Above 85°C. However, it's recommended to operate the device within the -20°C to 85°C range for optimal performance and reliability.
Yes, the PL10-16-130B is designed to withstand high-vibration and high-shock environments. It meets the IEC 60068-2-6 vibration test and the IEC 60068-2-27 shock test. However, it's recommended to consult with Tamura's application engineers for specific vibration and shock requirements.
The typical lead time for the PL10-16-130B is 12-14 weeks, and the minimum order quantity (MOQ) is 1,000 pieces. However, these values may vary depending on the region, quantity, and other factors. It's recommended to consult with Tamura's sales representatives for the most up-to-date information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PL10-16-130B Overview

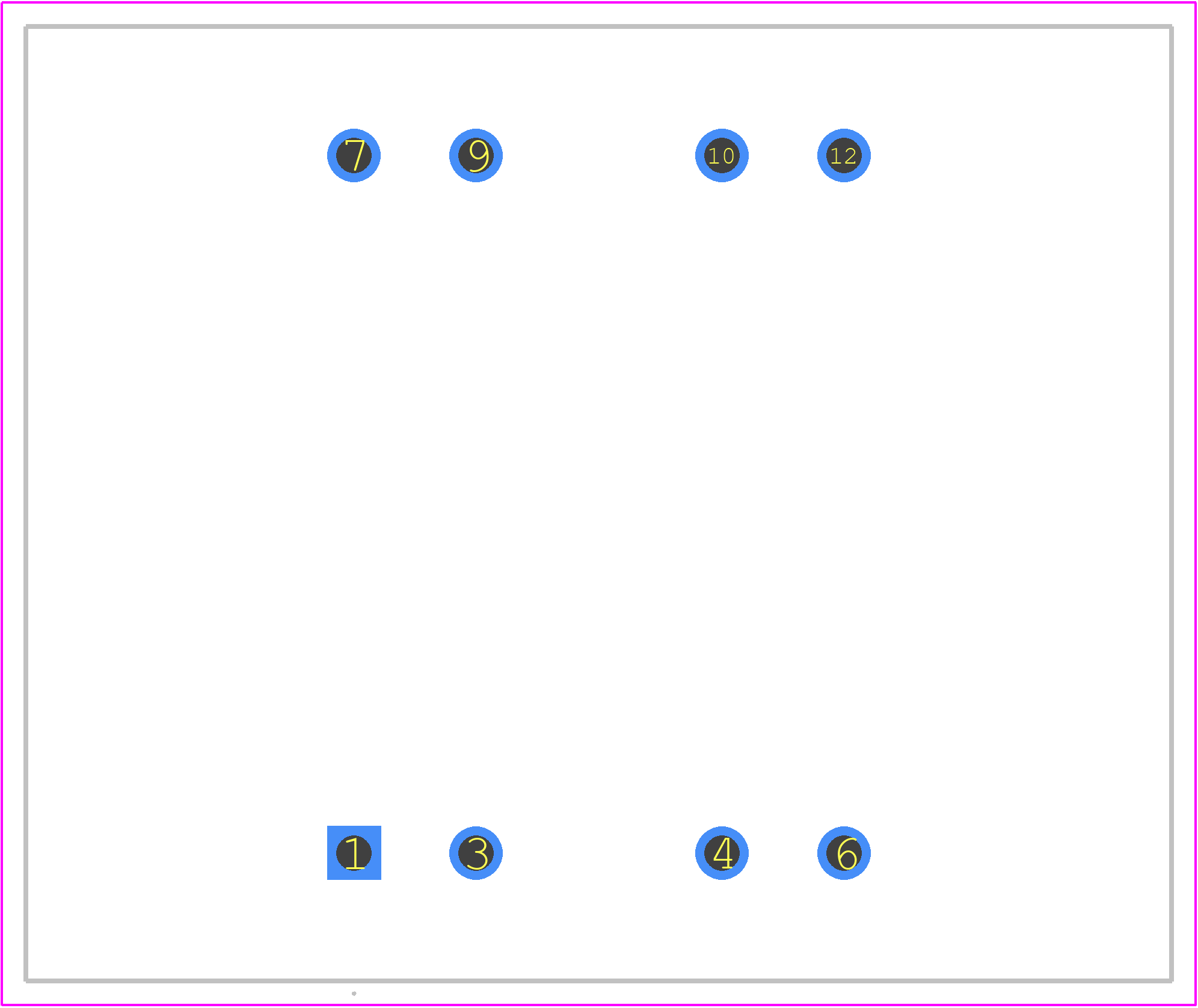

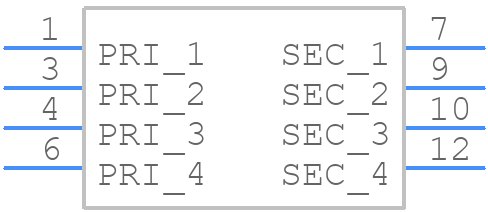

Use the download button to access the PL10-16-130B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL10-,
or try a keyword search, such as Power/Mains Transformers
