PL123E-05SC-R - Microchip

Description: Clock Buffer Low Skew 1:5 Zero Delay Buffer

Download PL123E-05SC-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

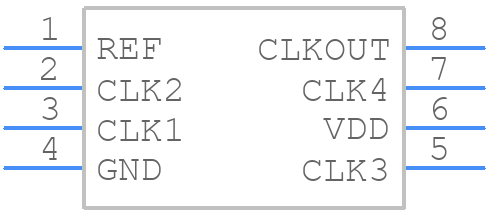

Symbol
PL123E-05SC-R - Microchip - PCB symbol
click to zoom
PCB Footprints
PL123E-05SC-R - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOP 8L
click to zoom
3D Models
PL123E-05SC-R - Microchip - 3D model - Small Outline Packages - SOP 8L
click to zoom

PL123E-05SC-R Details

  • Manufacturer Part Number:

    PL123E-05SC-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    ALSO OPERATE AT 3.3V SUPPLY

  • Family:

    PL123

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    5

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    45 mA

  • Prop. Delay@Nom-Sup:

    0.2 ns

  • Propagation Delay (tpd):

    0.2 ns

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    10 MHz

PL123E-05SC-R Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the PL123E-05SC-R evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The PL123E-05SC-R has multiple power modes, including low-power mode, shutdown mode, and standby mode. Configuration is done through the device's registers, which can be accessed through the I2C interface. Refer to the datasheet and application notes for specific register settings and configuration details.
  • The PL123E-05SC-R has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
  • Proper thermal management is crucial for the PL123E-05SC-R. Ensure good airflow, use thermal vias, and consider using a heat sink or thermal pad to dissipate heat. Refer to the datasheet and thermal management application notes for more information.
  • The PL123E-05SC-R has built-in ESD protection and latch-up prevention mechanisms. However, it's still essential to follow proper ESD handling procedures during assembly and testing. Additionally, ensure that the PCB design includes ESD protection components, such as TVS diodes, to prevent damage from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL123E-05SC-R Overview

Use the download button to access the PL123E-05SC-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL123, or try a keyword search, such as Clock Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
