PL130-07SC - Microchip

Description: IC CLK BUFFER 1:1 200MHZ 8SOP

Download PL130-07SC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

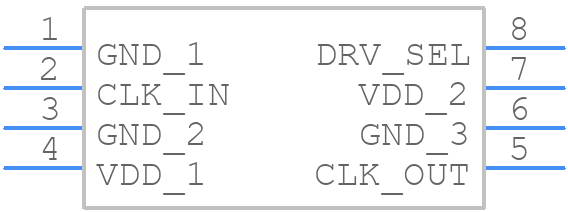

Symbol
PL130-07SC - Microchip - PCB symbol
click to zoom
PCB Footprints
PL130-07SC - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SOICN-8LD-PL-1
click to zoom
3D Models
PL130-07SC - Microchip - 3D model - Small Outline Packages - SOICN-8LD-PL-1
click to zoom

PL130-07SC Details

  • Manufacturer Part Number:

    PL130-07SC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 3.3V NOM SUPPLY

  • Family:

    PL130

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.93 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.94 mm

  • fmax-Min:

    200 MHz

PL130-07SC Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PL130-07SC is -40°C to +85°C.
  • To ensure reliable data transmission, ensure that the transmitter and receiver are properly synchronized, and the transmission line is properly terminated to minimize reflections and signal degradation.
  • The maximum cable length supported by the PL130-07SC depends on the specific application and cable characteristics, but a general guideline is to limit the cable length to 100 meters or less to ensure reliable data transmission.
  • Yes, the PL130-07SC can be used in a multi-drop configuration, but it requires careful consideration of the bus topology, cable length, and termination to ensure reliable data transmission.
  • To troubleshoot issues with the PL130-07SC, start by checking the power supply, clock signal, and data transmission lines for any anomalies or noise. Use oscilloscopes or logic analyzers to visualize the signals and identify potential issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL130-07SC Overview

Use the download button to access the PL130-07SC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL130, or try a keyword search, such as Clock Drivers
