- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for PL2303TA
- Part Number PL2303TA
- Manufacturer Prolific
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SSOP28
- Released Date Jul 31, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PL2303TA Details
-
Manufacturer Part Number:
PL2303TA
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Prolific Technology
-
YTEOL:
0
PL2303TA Frequently Asked Questions (FAQs)
-
The maximum cable length supported by PL2303TA is 3 meters (10 feet) for a standard USB 2.0 cable. However, it's recommended to use a shorter cable to minimize signal degradation and ensure reliable data transmission.
-
Yes, PL2303TA is backward compatible with USB 3.0 ports, but it will operate at USB 2.0 speeds. The device will negotiate the link speed with the host controller and operate at the highest speed supported by both devices.
-
The baud rate and data bits for the serial interface can be configured using the PL2303TA's serial interface control registers. The registers can be accessed through the USB interface using the Prolific PL2303TA driver. The driver provides APIs for configuring the serial interface settings.
-
Yes, PL2303TA is compatible with Windows 10 and later versions. Prolific provides Windows 10-compatible drivers for the PL2303TA, which can be downloaded from their website.
-
Yes, PL2303TA can operate with a 5V power supply. The device has an internal voltage regulator that can handle input voltages from 4.5V to 5.5V. However, it's recommended to use a clean and stable power supply to ensure reliable operation.
Trust Checks
Community Provided
System Verified
Community Approved
PL2303TA Overview

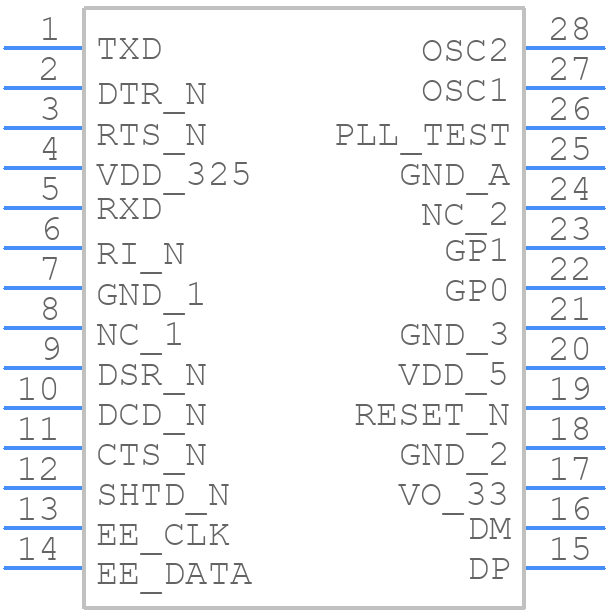

Use the download button to access the PL2303TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL230,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
