PL300-101L - COILCRAFT

Description: COILCRAFT - PL300-101L - PLANAR TRANSFORMER, 1:1, 300W, SMT

Download PL300-101L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

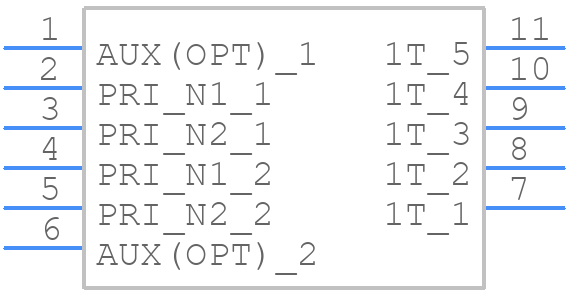

Symbol
PL300-101L - COILCRAFT - PCB symbol
click to zoom

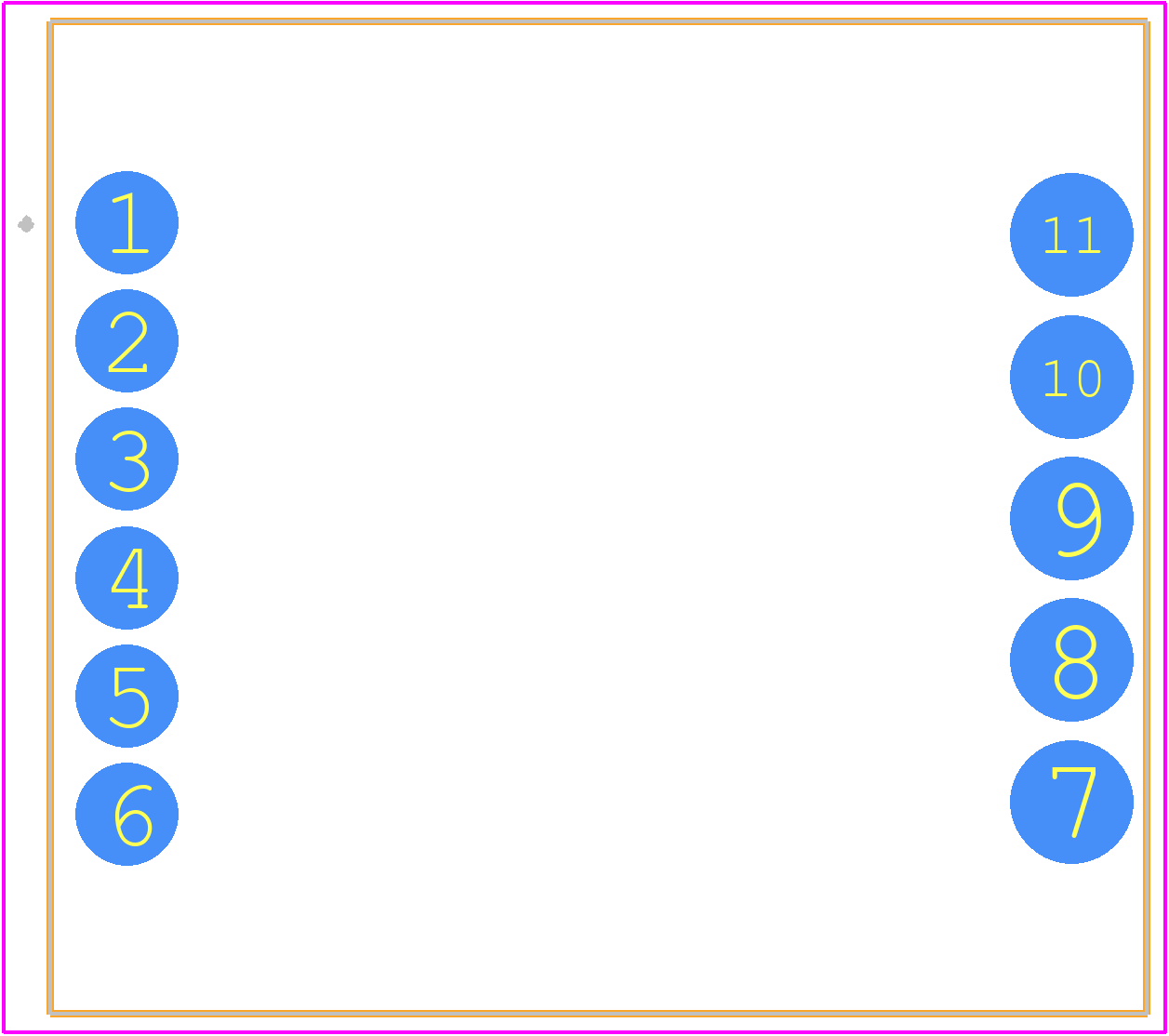

PCB Footprints
PL300-101L - COILCRAFT PCB footprint - Other - Other - PL300-101L-1
click to zoom
3D Models
PL300-101L - COILCRAFT - 3D model - Other - PL300-101L-1
click to zoom

PL300-101L Details

  • Manufacturer Part Number:

    PL300-101L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Approvals:

    AEC-Q200

  • Height:

    10.4 mm

  • Input Voltage-Nom:

    48 V

  • JESD-609 Code:

    e3

  • Length:

    29.46 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    700 kHz

  • Operating Frequency-Min:

    200 kHz

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Power Rating:

    300 W

  • Primary Inductance:

    448 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    26.67 mm

PL300-101L Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the PL300-101L in their datasheet, which includes a suggested pad layout and dimensions for optimal performance and reliability.
  • The PL300-101L is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult Coilcraft's temperature derating chart for specific guidance.
  • To minimize magnetic field interference, keep the PL300-101L at least 2-3 mm away from other components, and consider using shielding or a magnetic shield can to contain the field.
  • The self-resonant frequency of the PL300-101L is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Consult Coilcraft's application notes for guidance on calculating self-resonant frequency.
  • The PL300-101L is rated for a maximum current of 3.3 A, but the actual current handling capability may be lower depending on the operating frequency and temperature. Consult Coilcraft's current derating chart for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL300-101L Overview

Use the download button to access the PL300-101L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL300, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
