PL300-102L - COILCRAFT

Description: COILCRAFT - PL300-102L - PLANAR TRANSFORMER, 1:1, 300W, SMT

Download PL300-102L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

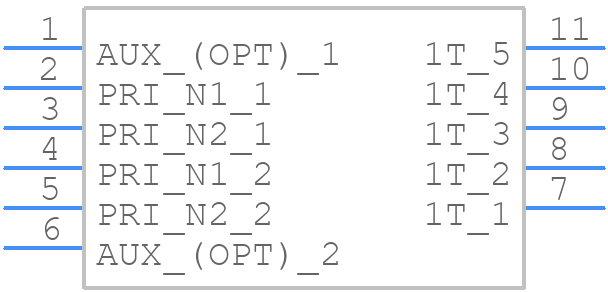

Symbol
PL300-102L - COILCRAFT - PCB symbol
click to zoom

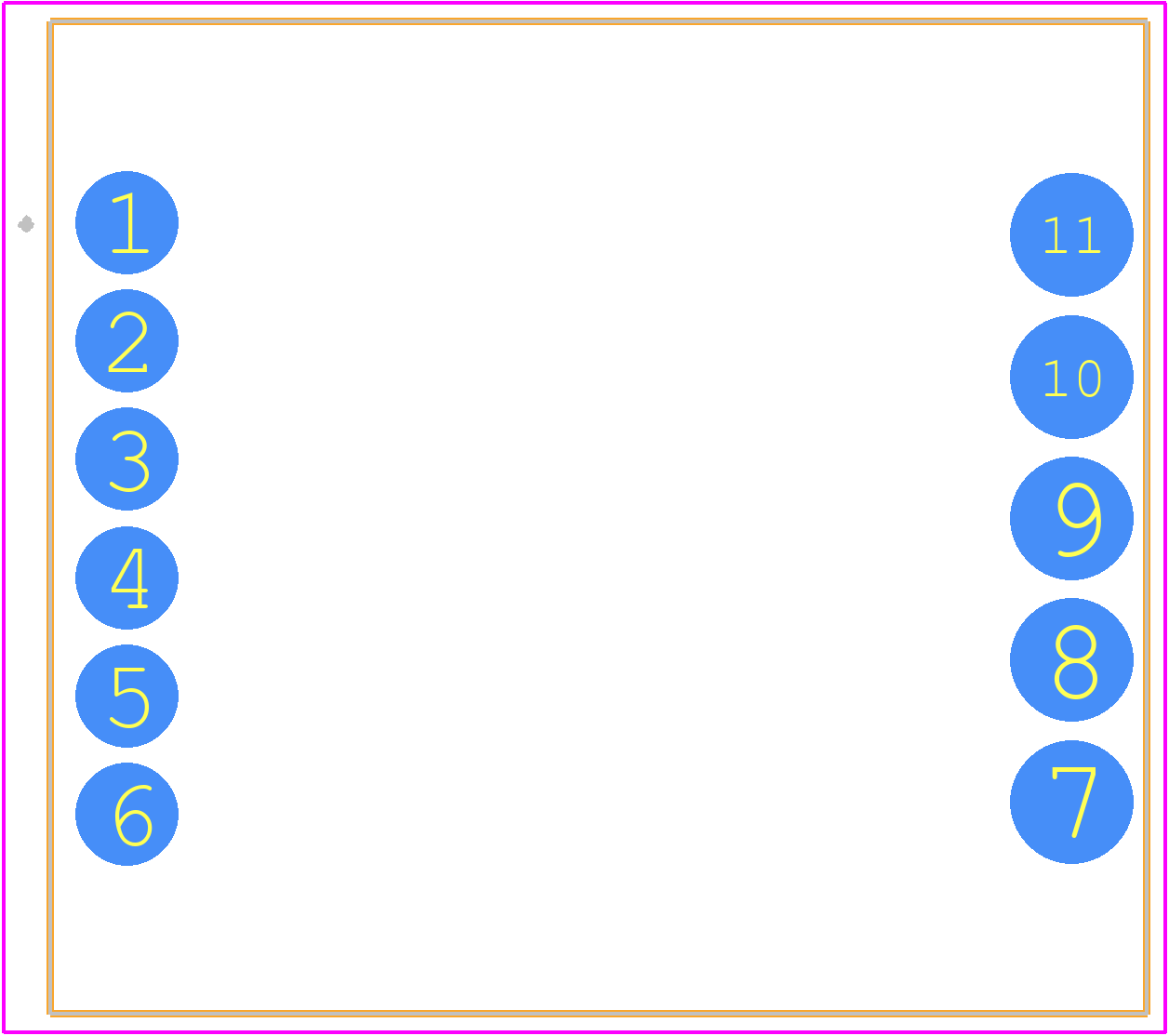

PCB Footprints
PL300-102L - COILCRAFT PCB footprint - Other - Other - PL300-101L-1
click to zoom
3D Models
PL300-102L - COILCRAFT - 3D model - Other - PL300-101L-1
click to zoom

PL300-102L Details

  • Manufacturer Part Number:

    PL300-102L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Approvals:

    AEC-Q200

  • Height:

    11.4 mm

  • Input Voltage-Nom:

    48 V

  • JESD-609 Code:

    e3

  • Length:

    29.46 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    700 kHz

  • Operating Frequency-Min:

    200 kHz

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Power Rating:

    300 W

  • Primary Inductance:

    635 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    26.67 mm

PL300-102L Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical layout with the inductor centered on the PCB, and keeping the traces as short and wide as possible to minimize parasitic inductance and resistance.
  • The PL300-102L is designed for high-frequency applications up to 1 GHz. It exhibits low insertion loss and high impedance, making it suitable for RF and microwave circuits.
  • The PL300-102L can operate safely up to 125°C, with a derating of 1.25% per degree Celsius above 80°C. However, it's recommended to consult Coilcraft's application notes for specific temperature derating guidelines.
  • Yes, the PL300-102L is suitable for switching regulator designs due to its low core loss and high saturation current. However, it's essential to consider the inductor's current rating, core loss, and saturation characteristics to ensure reliable operation.
  • Coilcraft provides an online inductor selection tool that helps engineers choose the optimal inductor value based on their specific application requirements, including frequency, current, and impedance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL300-102L Overview

Use the download button to access the PL300-102L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL300, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
