PL300-103L - COILCRAFT

PL300-103L Frequently Asked Questions (FAQs)

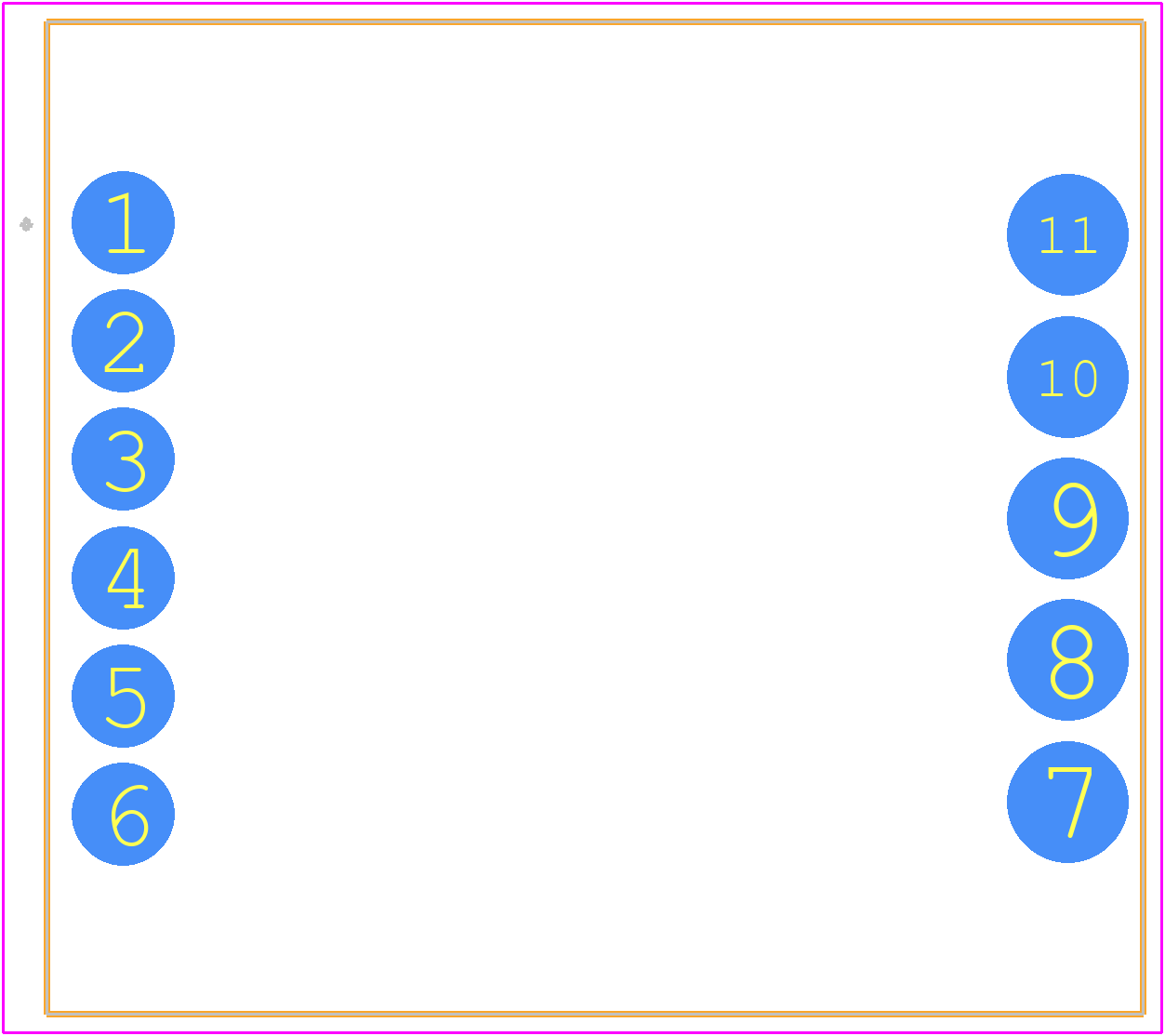

• What is the recommended land pattern for the PL300-103L?
  Coilcraft provides a recommended land pattern for the PL300-103L in their datasheet, which includes a suggested pad layout and dimensions for optimal performance and reliability.
• Can I use the PL300-103L in a high-temperature environment?
  The PL300-103L is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. Consult Coilcraft's temperature derating chart for specific guidance.
• How do I handle the PL300-103L's sensitivity to mechanical stress?
  To minimize the risk of mechanical stress affecting the PL300-103L's performance, follow proper handling and mounting procedures, such as avoiding bending or flexing the leads, and using a secure and even soldering process.
• What is the PL300-103L's Q factor, and how does it affect my design?
  The Q factor of the PL300-103L is not explicitly stated in the datasheet, but it can be estimated based on the inductor's impedance and resonant frequency. A higher Q factor generally indicates lower losses and better efficiency, but may also make the design more sensitive to component variations.
• Can I use the PL300-103L in a high-frequency application?
  The PL300-103L is designed for use up to 1 MHz, but it may be suitable for higher frequencies depending on the specific application and design requirements. Consult Coilcraft's high-frequency modeling data and simulation tools to determine the inductor's performance at higher frequencies.
