PL300-104L - COILCRAFT

Description: COILCRAFT - PL300-104L - Planar Transformer, 300 W, 1:1, 1075 µH, Surface Mount, PL300 Series

Download PL300-104L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

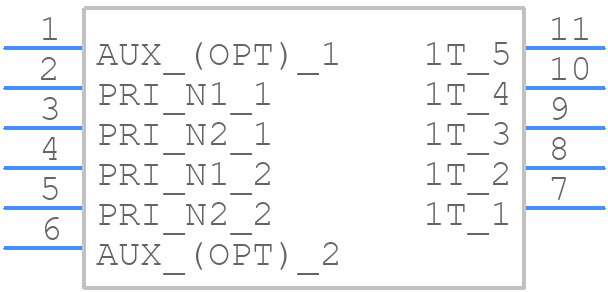

Symbol
PL300-104L - COILCRAFT - PCB symbol
click to zoom

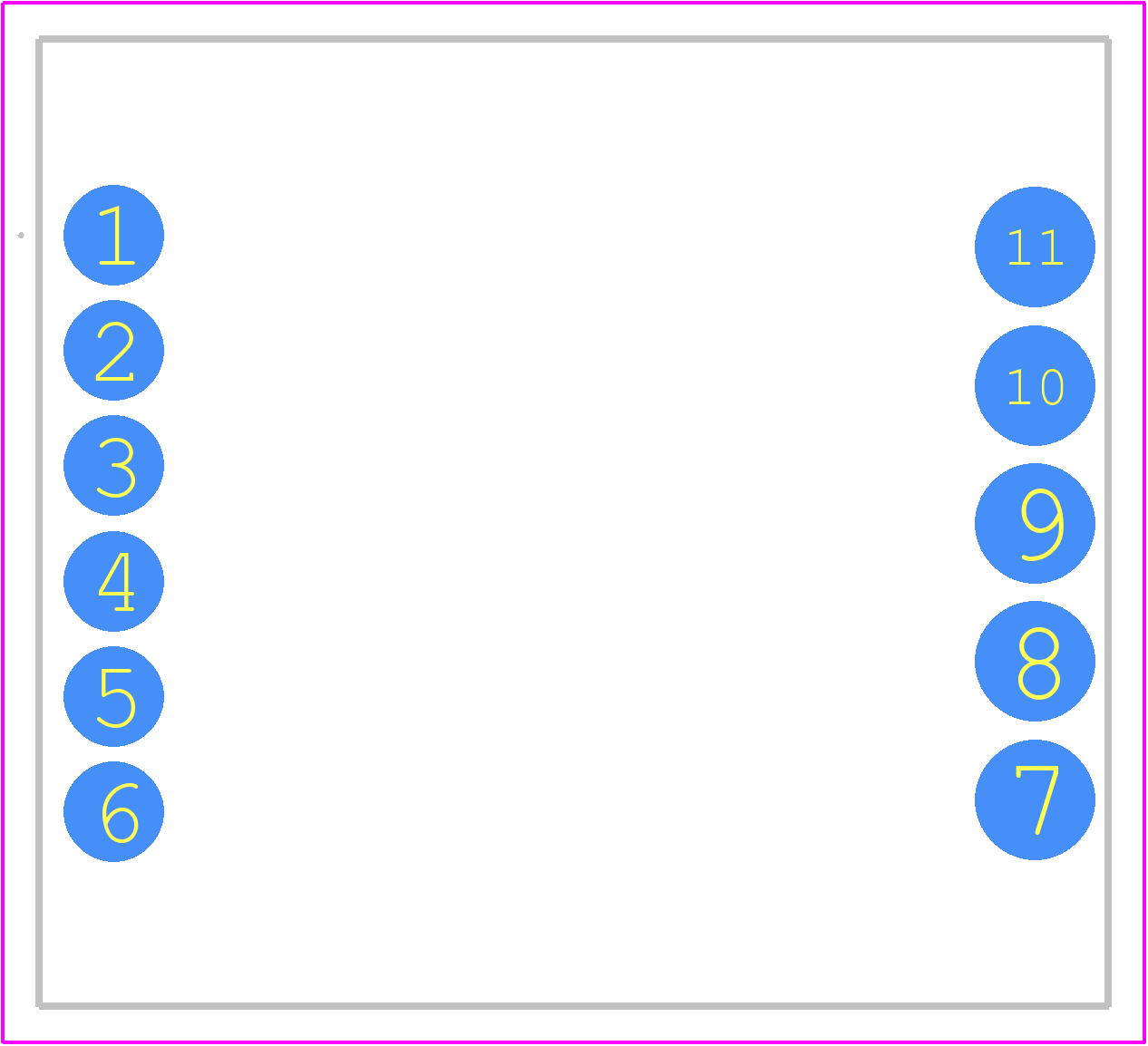

PCB Footprints
PL300-104L - COILCRAFT PCB footprint - Other - Other - PL300-104L-4
click to zoom
3D Models
PL300-104L - COILCRAFT - 3D model - Other - PL300-104L-4
click to zoom

PL300-104L Details

  • Manufacturer Part Number:

    PL300-104L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Approvals:

    AEC-Q200

  • Height:

    12.1 mm

  • Input Voltage-Nom:

    48 V

  • JESD-609 Code:

    e3

  • Length:

    29.46 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    700 kHz

  • Operating Frequency-Min:

    200 kHz

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TRAY

  • Power Rating:

    300 W

  • Primary Inductance:

    1075 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    26.67 mm

PL300-104L Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PL300-104L is a rectangular pad with a minimum size of 50 mils x 30 mils (1.27 mm x 0.76 mm) with a non-solder mask defined (NSMD) pad.
  • The PL300-104L is rated for operation up to 125°C, but derating is required above 85°C. Consult the datasheet for specific derating guidelines.
  • Handle the PL300-104L by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to handle the component, and avoid bending or flexing the leads.
  • The SRF of the PL300-104L is approximately 150 MHz, but this can vary depending on the specific application and operating conditions.
  • The PL300-104L is rated for a maximum current of 3.3 A, but the actual current handling capability depends on the operating frequency, temperature, and other factors. Consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PL300-104L Overview

Use the download button to access the PL300-104L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL300, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
