Tamura Corporation of America provides a recommended PCB layout and land pattern in their application notes, which can be obtained by contacting their technical support team or through their website. The recommended layout ensures optimal performance and minimizes thermal resistance.
Yes, the PL5.0-28-130B is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. Tamura Corporation of America recommends consulting their application notes for specific guidance on vibration testing and mitigation.
The maximum allowable temperature rise for the PL5.0-28-130B is 40°C above the ambient temperature. Exceeding this temperature rise may affect the device's reliability and lifespan. It's crucial to ensure proper thermal management and heat dissipation in the system design.
The PL5.0-28-130B is designed to operate in environments with relative humidity up to 80%. However, it's essential to follow proper conformal coating and sealing techniques to prevent moisture ingress. Tamura Corporation of America recommends consulting their application notes for specific guidance on environmental testing and protection.
Tamura Corporation of America recommends storing the PL5.0-28-130B in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with anti-static wrist straps or mats to prevent electrostatic discharge damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PL5.0-28-130B Overview

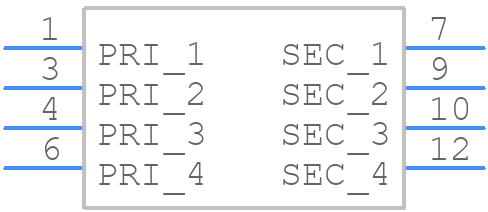

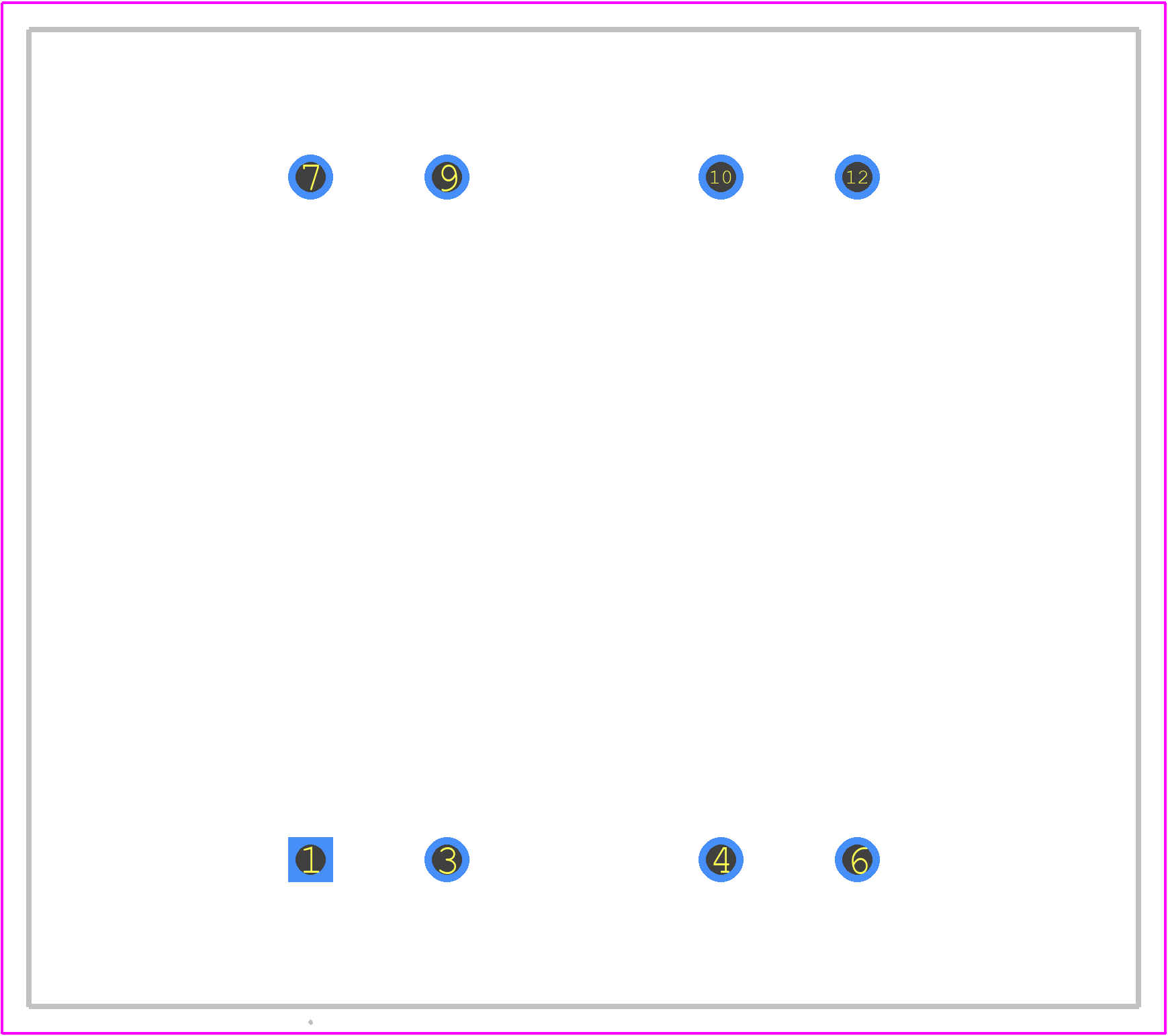

Use the download button to access the PL5.0-28-130B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PL5.0,
or try a keyword search, such as Power/Mains Transformers
