PL505-4G13 - P-tec

Description: LED Circuit Board Indicator LED Circuit Board Indicator 1 High x 4 Wide Green Diffused, Tinted 2.1V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Download PL505-4G13 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PL505-4G13 model

Email notifications will be applied after download.

Send part feedback

Symbol

PL505-4G13 - P-tec - PCB symbol

PCB Footprints

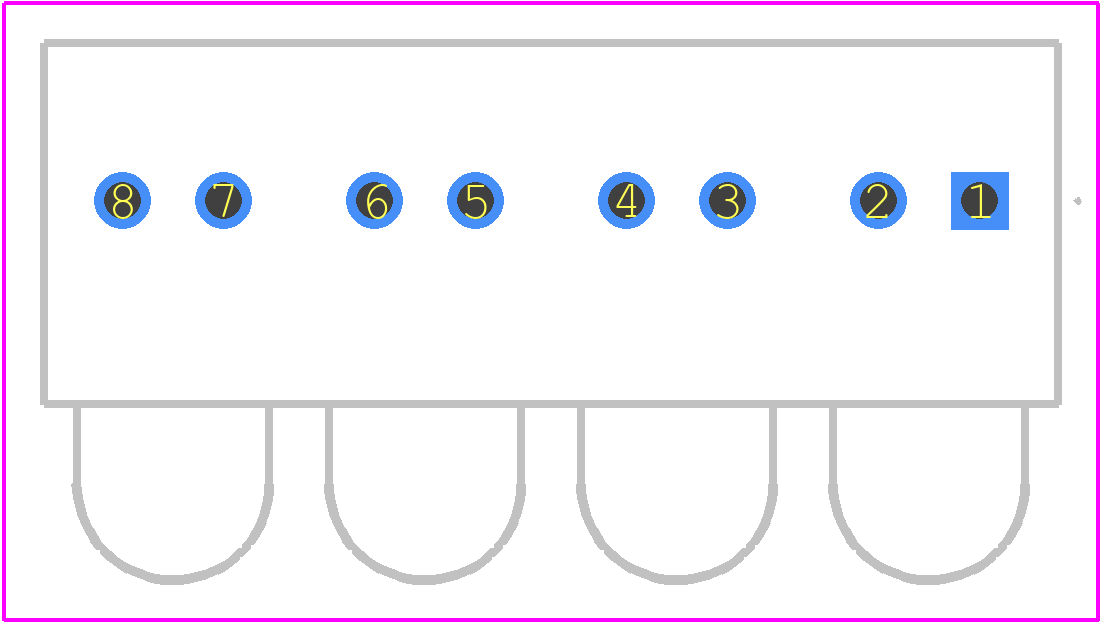

PL505-4G13 - P-tec PCB footprint - Other - Other - PL505-4G13-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for PL505-4G13
Part Number PL505-4G13
Manufacturer P-tec
Pin Count 8
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - PL505-4G13-1
Released Date Oct 26, 2025
Last Modified Date Oct 27, 2025 3:58 PM UTC
Pinout / Pin List Click Here (Member Only)

PL505-4G13 Details

Manufacturer Part Number:
PL505-4G13
Manufacturer:
P-tec Corporation

Trust Checks

Community Provided

System Verified

Community Approved

PL505-4G13 Overview

Use the download button to access the PL505-4G13 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PL505, or try a keyword search, such as Visible LEDs
