PL8802 - iNRCORE

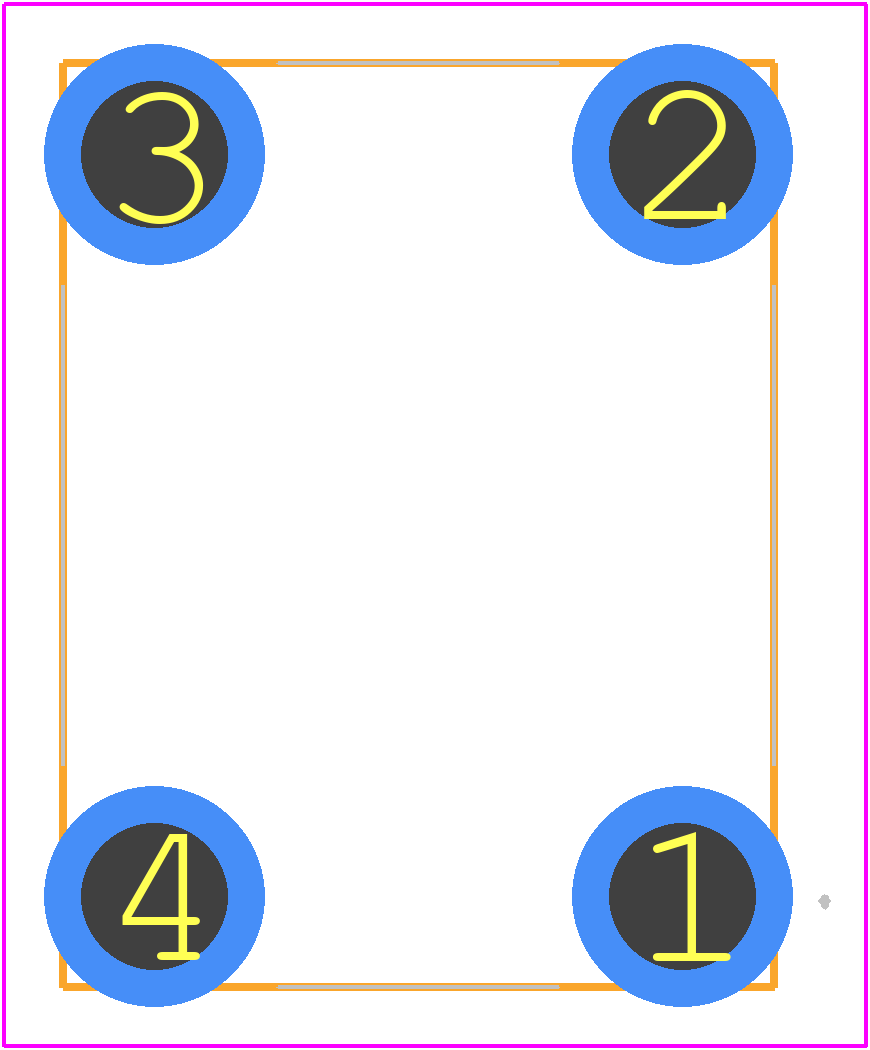

PL8802 Details

• Manufacturer Part Number:

  PL8802

• Part Life Cycle Code:

  Active

• Package Description:

  CHIP

• ECCN Code:

  EAR99

• HTS Code:

  8504.50.80.00

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  iNRCORE LLC

• YTEOL:

  6

• Case/Size Code:

  9170

• Construction:

  Toroidal

• DC Resistance:

  0.08 Ω

• Inductance-Nom (L):

  3000 µH

• Inductor Application:

  DC-DC CONVERTER

• Inductor Type:

  COMMON MODE CHOKE

• Number of Functions:

  2

• Number of Terminals:

  4

• Operating Temperature-Max:

  130 °C

• Operating Temperature-Min:

  -55 °C

• Package Height:

  12.95 mm

• Package Length:

  23.11 mm

• Package Style:

  Toroidal

• Package Width:

  17.78 mm

• Packing Method:

  Tube

• Rated Current-Max:

  2.5 A

• Self Resonance Frequency:

  2.2 MHz

• Shape/Size Description:

  RECTANGULAR PACKAGE

• Shielded:

  NO

• Surface Mount:

  YES

• Terminal Placement:

  DUAL IN-LINE

• Terminal Shape:

  ONE SURFACE

• Tolerance:

  30%
