PLA10AN3021R3R2B - Murata Electronics

Description: MURATA - PLA10AN3021R3R2B - CHOKE, COMMON MODE, 2X3.0MH, 1.3A

Download PLA10AN3021R3R2B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PLA10AN3021R3R2B - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

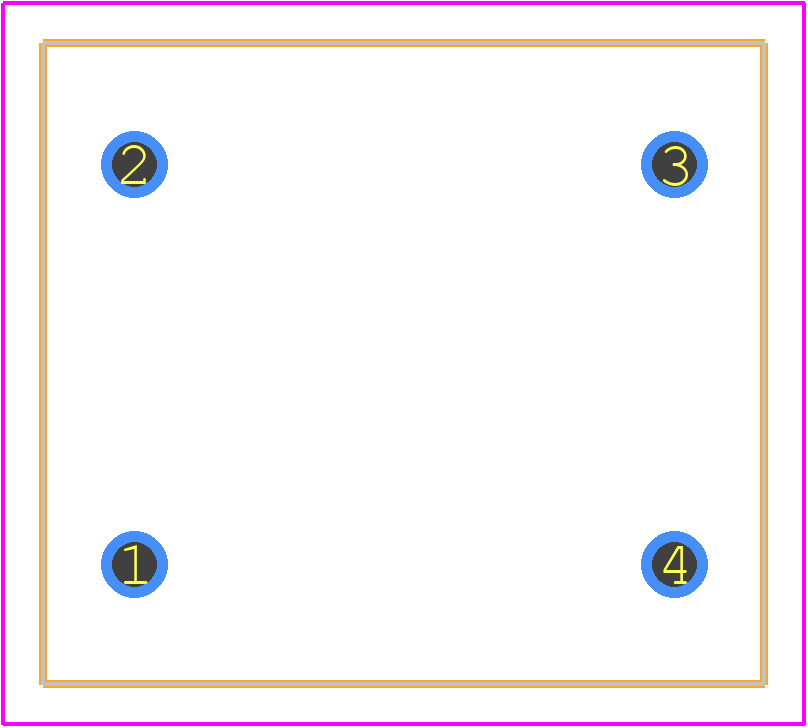

PLA10AN3021R3R2B - Murata Electronics PCB footprint - Other - Other - PLA10AS3021R3R2B
click to zoom
3D Models
PLA10AN3021R3R2B - Murata Electronics - 3D model - Other - PLA10AS3021R3R2B
click to zoom

PLA10AN3021R3R2B Details

  • Manufacturer Part Number:

    PLA10AN3021R3R2B

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • Additional Feature:

    INDUCTANCE 3 MILLI HENRY; STANDARD WINDING TYPE

  • Filter Type:

    SINGLE PHASE EMI FILTER

  • Height:

    17.5 mm

  • Insulation Resistance-Min:

    100 MΩ

  • JESD-609 Code:

    e2

  • Length:

    18 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    BOX

  • Rated Current:

    1.3 A

  • Rated Voltage:

    300 V

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Width:

    16 mm

PLA10AN3021R3R2B Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PLA10AN3021R3R2B can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal assembly and reliability.
  • The PLA10AN3021R3R2B is a moisture-sensitive device. It is recommended to follow the IPC/JEDEC J-STD-033 standard for handling and storage of moisture-sensitive devices to prevent damage during assembly and reflow soldering.
  • The maximum reflow temperature for the PLA10AN3021R3R2B is 260°C, with a recommended reflow profile that follows the IPC/JEDEC J-STD-020 standard.
  • The PLA10AN3021R3R2B is designed to withstand moderate vibration levels. However, for high-vibration environments, it is recommended to consult with Murata's application engineers to determine the suitability of the component and to discuss potential custom designs or modifications.
  • The typical lead time for the PLA10AN3021R3R2B varies depending on the region, quantity, and availability. It is recommended to check with authorized distributors or Murata's sales representatives for the most up-to-date lead time information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PLA10AN3021R3R2B Overview

Use the download button to access the PLA10AN3021R3R2B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLA10, or try a keyword search, such as Mains Filters

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
