Part Image

PLA143 - LITTELFUSE

Description: SPST-NO(1 Form A) 1.2V 600V 50Ω 100mA DIP-6 Solid State Relays (MOS Output) ROHS

Download PLA143 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

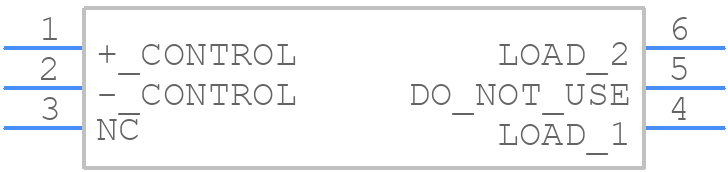

Symbol
PLA143 - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
PLA143 - LITTELFUSE PCB footprint - Other - Other - DIP-6
click to zoom
3D Models
PLA143 - LITTELFUSE - 3D model - Other - DIP-6
click to zoom

PLA143 Details

  • Manufacturer Part Number:

    PLA143

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PLA143 Overview

Use the download button to access the PLA143 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLA14, or try a keyword search, such as Solid State Relays
