PLA160S - LITTELFUSE

Description: SPST-NO Solid State Relay Solder 50 mA rms/mA dc, 80 mA dc Surface Mount, AC/DC Relay

Download PLA160S Model

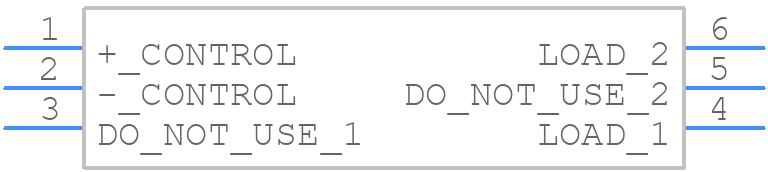

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PLA160S - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - PLA160S
click to zoom
3D Models
PLA160S - LITTELFUSE  - 3D model - Small Outline Packages - PLA160S
click to zoom

PLA160S Details

  • Manufacturer Part Number:

    PLA160S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR
