PLA192STR - LITTELFUSE

Description: Relay SSR 50mA 1.4V DC-IN 0.15A 600V AC/DC-OUT 6-Pin PDIP SMD T/R

Download PLA192STR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

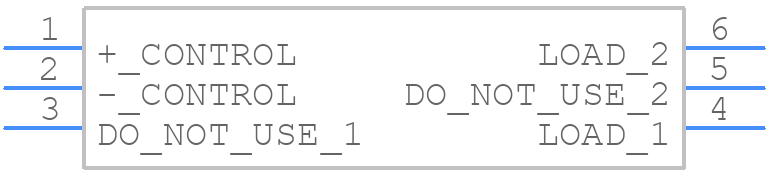

PLA192STR - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

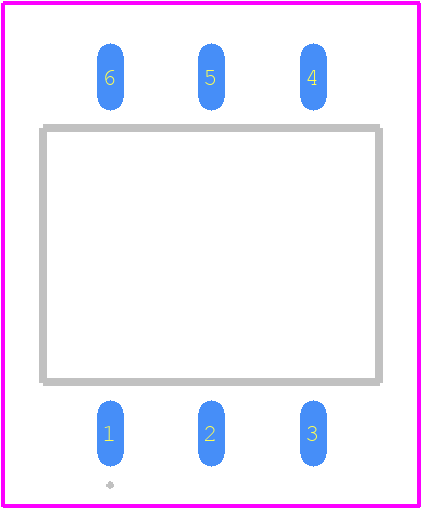

PLA192STR - LITTELFUSE PCB footprint - Other - Other - 6-SMD_2026-1.8
click to zoom
3D Models
PLA192STR - LITTELFUSE - 3D model - Other - 6-SMD_2026-1.8
click to zoom

PLA192STR Details

  • Manufacturer Part Number:

    PLA192STR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Control Current:

    0.00022 A

  • Control Voltage:

    0.9 V

  • Forward Current-Max:

    0.05 A

  • Input Type:

    AC/DC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    22 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.302 mm

  • Overall Length:

    8.382 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Surface Mount:

    YES

PLA192STR Frequently Asked Questions (FAQs)

  • A good PCB layout for PLA192STR involves keeping the traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a common ground point for the input and output to minimize noise and ensure proper operation.
  • PLA192STR has built-in overvoltage protection (OVP) that can withstand voltage transients up to 40V for a short duration. However, it's essential to ensure that the device is not exposed to sustained overvoltage conditions, as this can cause permanent damage.
  • While PLA192STR is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management when using the device in high-temperature applications. Proper heat sinking and thermal design can help ensure reliable operation.
  • The recommended input capacitor value for PLA192STR is 10uF to 22uF, with a voltage rating of at least 25V. This helps to filter out noise and ensure stable operation.
  • PLA192STR has a soft-start feature that helps to reduce inrush current during power-up. During power-down, the device will shut down in a controlled manner to prevent voltage spikes and ensure safe operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PLA192STR Overview

Use the download button to access the PLA192STR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLA19, or try a keyword search, such as Solid State Relays
