PLC30F300A1/AA - Positronic

Description: 30 Connector Receptacle, Female Sockets Through Hole Blue Power

Download PLC30F300A1/AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PLC30F300A1/AA - Positronic - PCB symbol
click to zoom
PCB Footprints

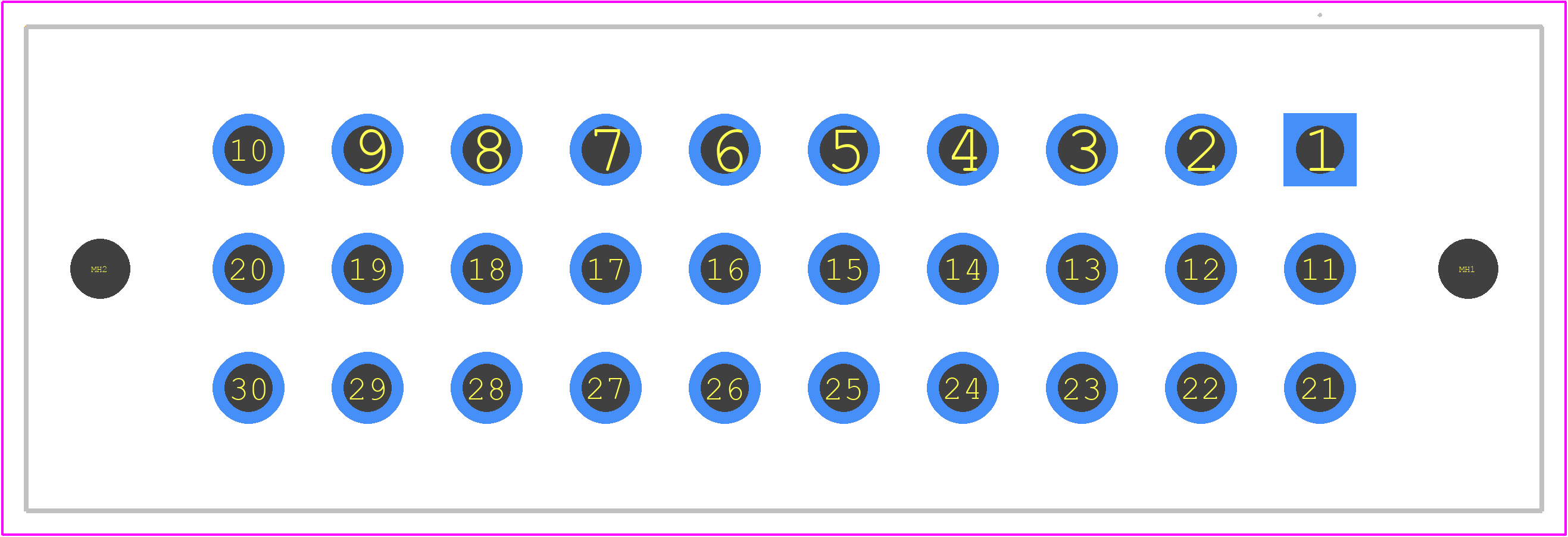

PLC30F300A1/AA - Positronic PCB footprint - Other - Other - PLC30F300A1/AA-2
click to zoom
3D Models
PLC30F300A1/AA - Positronic - 3D model - Other - PLC30F300A1/AA-2
click to zoom

PLC30F300A1/AA Details

  • Manufacturer Part Number:

    PLC30F300A1/AA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    7.76

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0
