PLC30M300A1 - Positronic

Description: Rectangular Power Connector, 30 Contact(s), Male, Solder Terminal

Download PLC30M300A1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PLC30M300A1 - Positronic - PCB symbol
click to zoom
PCB Footprints

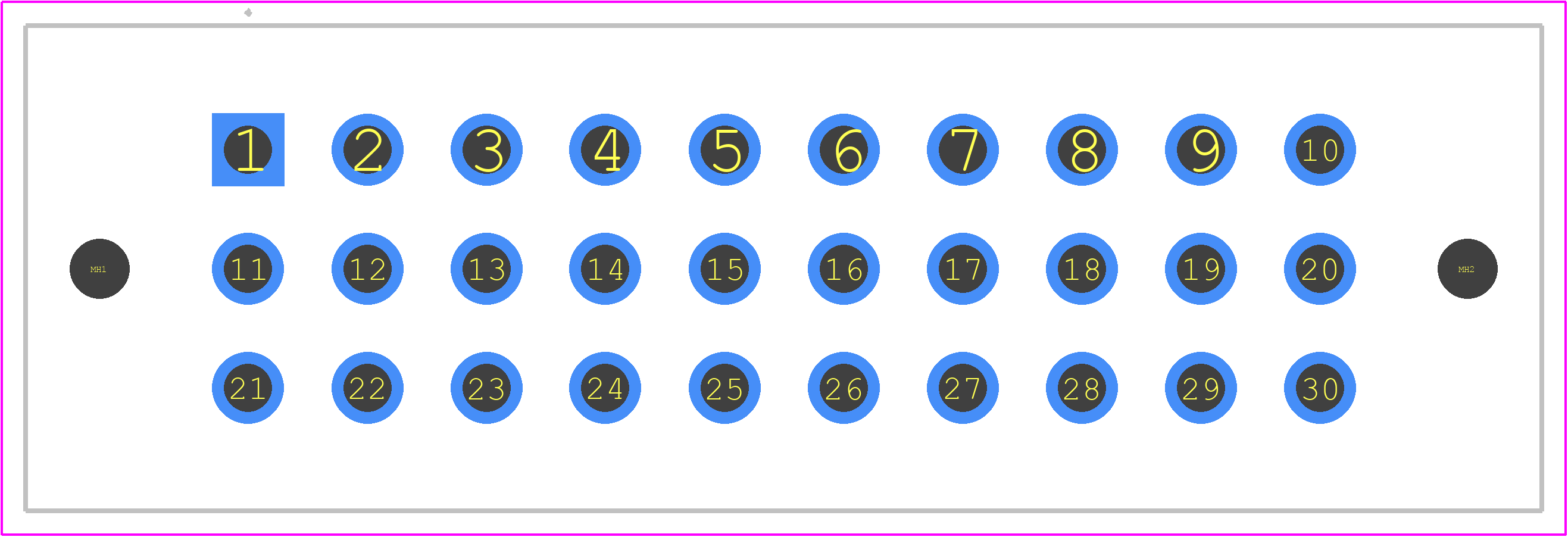

PLC30M300A1 - Positronic PCB footprint - Other - Other - PLC30M300A1-1
click to zoom
3D Models
PLC30M300A1 - Positronic - 3D model - Other - PLC30M300A1-1
click to zoom

PLC30M300A1 Details

  • Manufacturer Part Number:

    PLC30M300A1

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    6

  • Additional Feature:

    POLARIZED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    Gold Flash (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BERYLLIUM COPPER/BRASS

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

PLC30M300A1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure reliable connections.
  • Yes, the PLC30M300A1 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the PLC30M300A1 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to moisture and dust.
  • The maximum operating temperature range for the PLC30M300A1 is -40°C to 125°C (-40°F to 257°F).
  • No, the PLC30M300A1 is designed for use with wire gauges 30 AWG to 24 AWG. Using a larger wire gauge may compromise the connection reliability.
