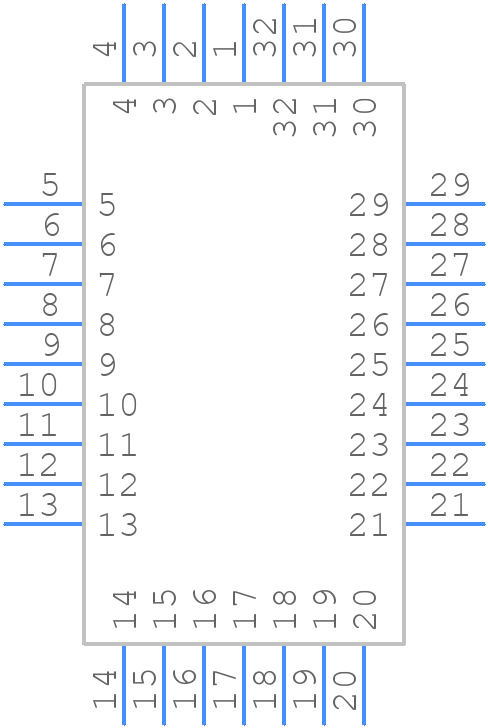

PLCC-032-T-N - SAMTEC - PCB symbol
click to zoom
PCB Footprints

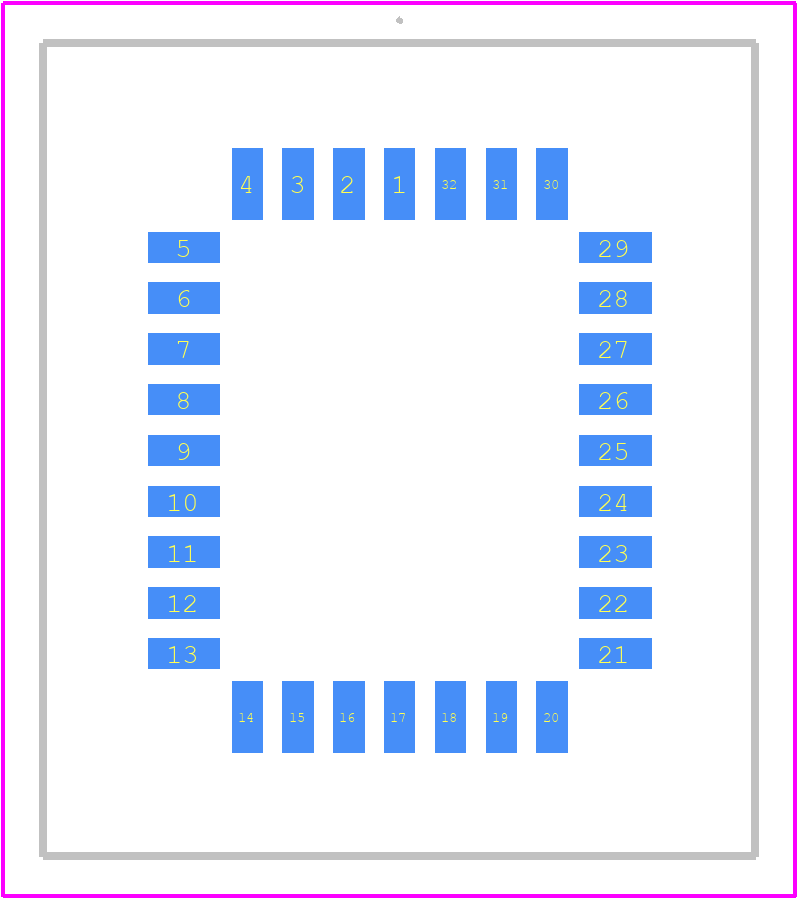

PLCC-032-T-N - SAMTEC PCB footprint - Other - Other - PLCC-032-T-N-2
click to zoom
3D Models
PLCC-032-T-N - SAMTEC - 3D model - Other - PLCC-032-T-N-2
click to zoom

PLCC-032-T-N Details

  • Manufacturer Part Number:

    PLCC-032-T-N

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    0

  • Additional Feature:

    TIGER EYE

  • Body Breadth:

    0.8 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    0.7 inch

  • Contact Configuration:

    8X8

  • Contact Finish Mating:

    MATTE TIN OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BERYLLIUM COPPER

  • Contact Style:

    BELLOWED TYPE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC32

  • Housing Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SURFACE MOUNT

PLCC-032-T-N Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the PLCC-032-T-N is 6-8 in-lbs (0.7-0.9 Nm).
  • Yes, the PLCC-032-T-N is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high vibration, shock, and temperature fluctuations.
  • The operating temperature range of the PLCC-032-T-N is -55°C to +125°C.
  • Yes, the PLCC-032-T-N is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.
  • Yes, the PLCC-032-T-N is designed to operate in humid environments. It has a moisture-resistant design and is suitable for use in applications with high humidity.
