PLCC-44-AT - Adam Tech

Description: Conn PLCC Socket SKT 44 POS 1.27mm Solder ST Thru-Hole Tube

Download PLCC-44-AT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

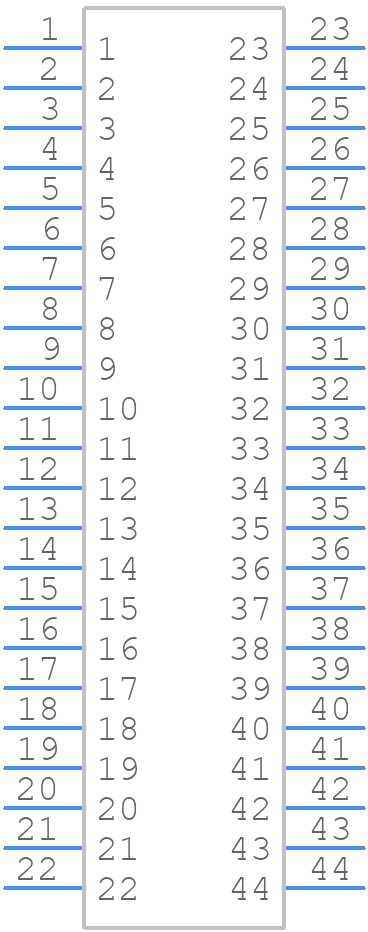

PLCC-44-AT - Adam Tech - PCB symbol
click to zoom
PCB Footprints

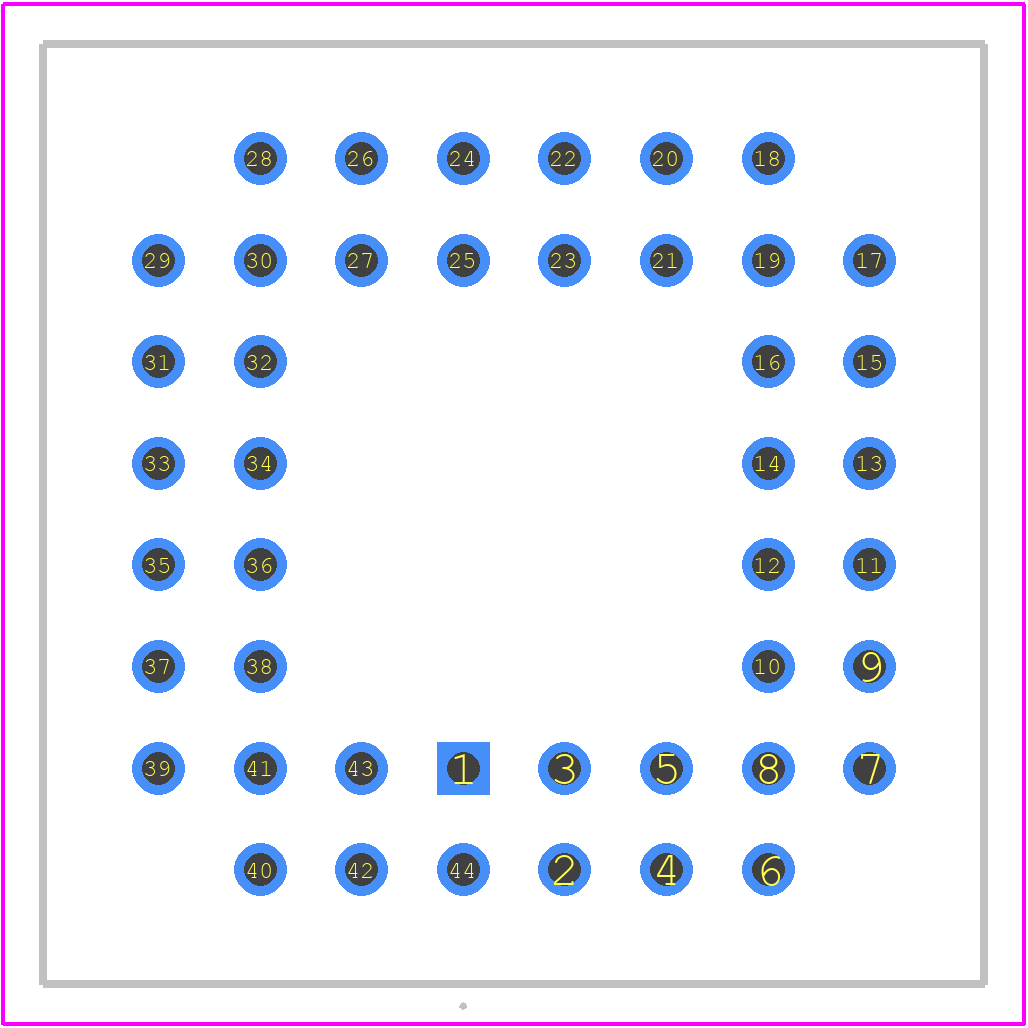

PLCC-44-AT - Adam Tech PCB footprint - Other - Other - PLCC-44-AT-1
click to zoom
3D Models
PLCC-44-AT - Adam Tech - 3D model - Other - PLCC-44-AT-1
click to zoom

PLCC-44-AT Details

  • Manufacturer Part Number:

    PLCC-44-AT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    6.83

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.925 inch

  • Body Depth:

    0.318 inch

  • Body Length:

    0.925 inch

  • Contact Configuration:

    11X11

  • Contact Finish Mating:

    TIN OVER COPPER

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC44

  • Dielectric Withstanding Voltage:

    500VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER

PLCC-44-AT Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for PLCC-44-AT is between 230°C to 250°C for a maximum of 5 seconds.
  • Yes, PLCC-44-AT is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
  • The maximum operating temperature range for PLCC-44-AT is -40°C to 85°C.
  • Yes, PLCC-44-AT is designed to withstand high-vibration applications, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the component.
  • Yes, PLCC-44-AT is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium above the allowed limits.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PLCC-44-AT Overview

Use the download button to access the PLCC-44-AT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLCC-, or try a keyword search, such as Sockets and Chip Carriers
