PLCC-68-AT-SMT - Adam Tech

Description: Conn PLCC Socket SKT 68 POS 1.27mm Solder ST SMD Tube

Download PLCC-68-AT-SMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PLCC-68-AT-SMT - Adam Tech - PCB symbol
click to zoom
PCB Footprints

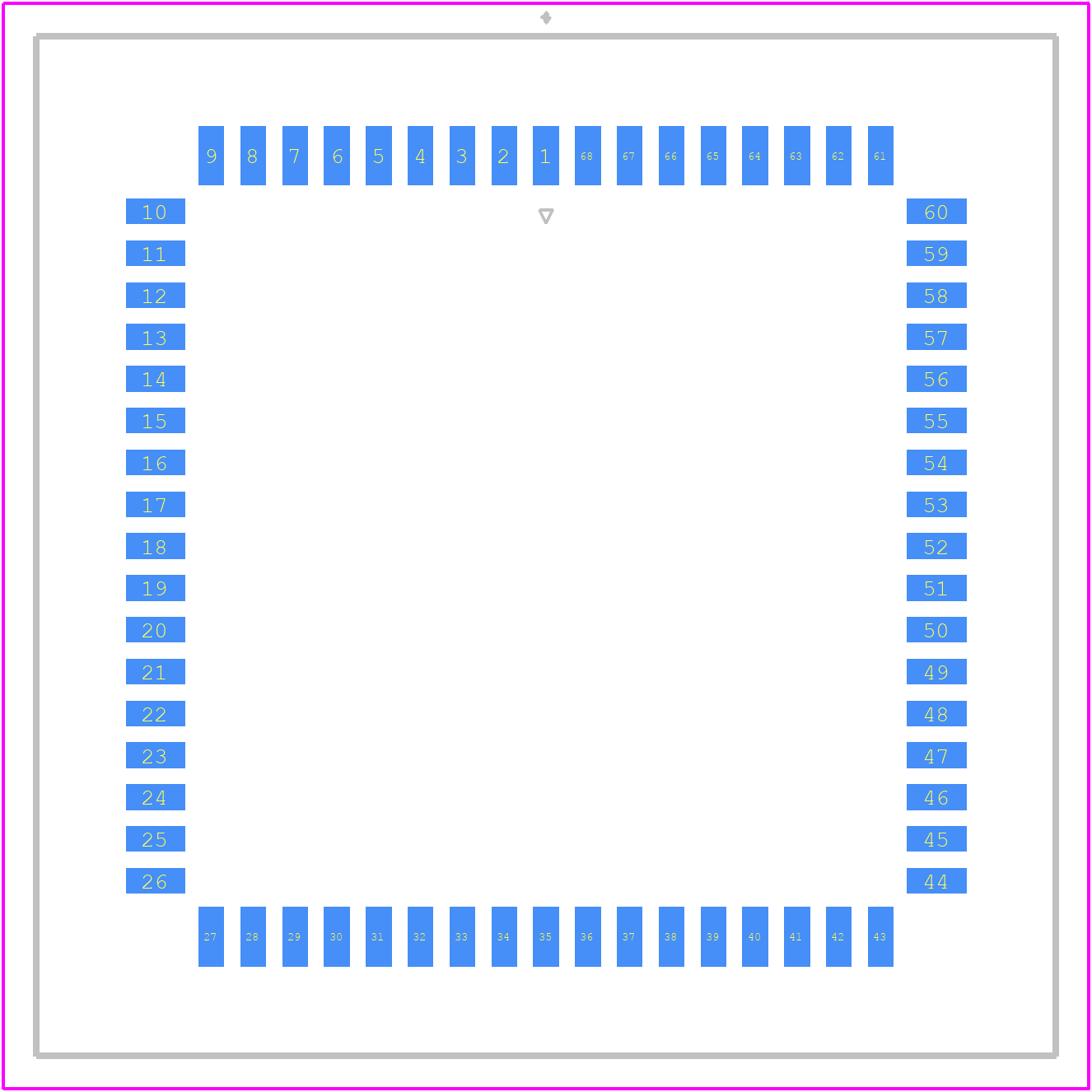

PLCC-68-AT-SMT - Adam Tech PCB footprint - Other - Other - PLCC-68-AT-SMT-2
click to zoom
3D Models
PLCC-68-AT-SMT - Adam Tech - 3D model - Other - PLCC-68-AT-SMT-2
click to zoom

PLCC-68-AT-SMT Details

  • Manufacturer Part Number:

    PLCC-68-AT-SMT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    6.83

  • Additional Feature:

    STANDARD: UL 94V-0, LOW PROFILE

  • Body Breadth:

    1.219 inch

  • Body Depth:

    0.181 inch

  • Body Length:

    1.219 inch

  • Contact Configuration:

    17X17

  • Contact Finish Mating:

    TIN OVER COPPER

  • Contact Finish Termination:

    TIN

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC68

  • Dielectric Withstanding Voltage:

    500VAC V

  • Housing Material:

    POLYPHENYLENE SULFIDE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    68

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SURFACE MOUNT

PLCC-68-AT-SMT Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for PLCC-68-AT-SMT is between 220°C to 240°C for a maximum of 3 seconds.
  • Yes, PLCC-68-AT-SMT is compatible with lead-free soldering, but it's recommended to follow the manufacturer's guidelines for lead-free soldering profiles.
  • The maximum operating temperature for PLCC-68-AT-SMT is 125°C, but it's recommended to operate within 85°C for optimal performance and reliability.
  • Yes, PLCC-68-AT-SMT is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the component.
  • Yes, PLCC-68-AT-SMT is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium above the allowed thresholds.
