PLCC-84-AT - Adam Tech

Description: 84 (4 x 21) Pos PLCC Socket Tin Through Hole 55°C ~ 105°C ,1 A 30mOhm 0.050" (1.27mm)

Download PLCC-84-AT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PLCC-84-AT - Adam Tech - PCB symbol
click to zoom

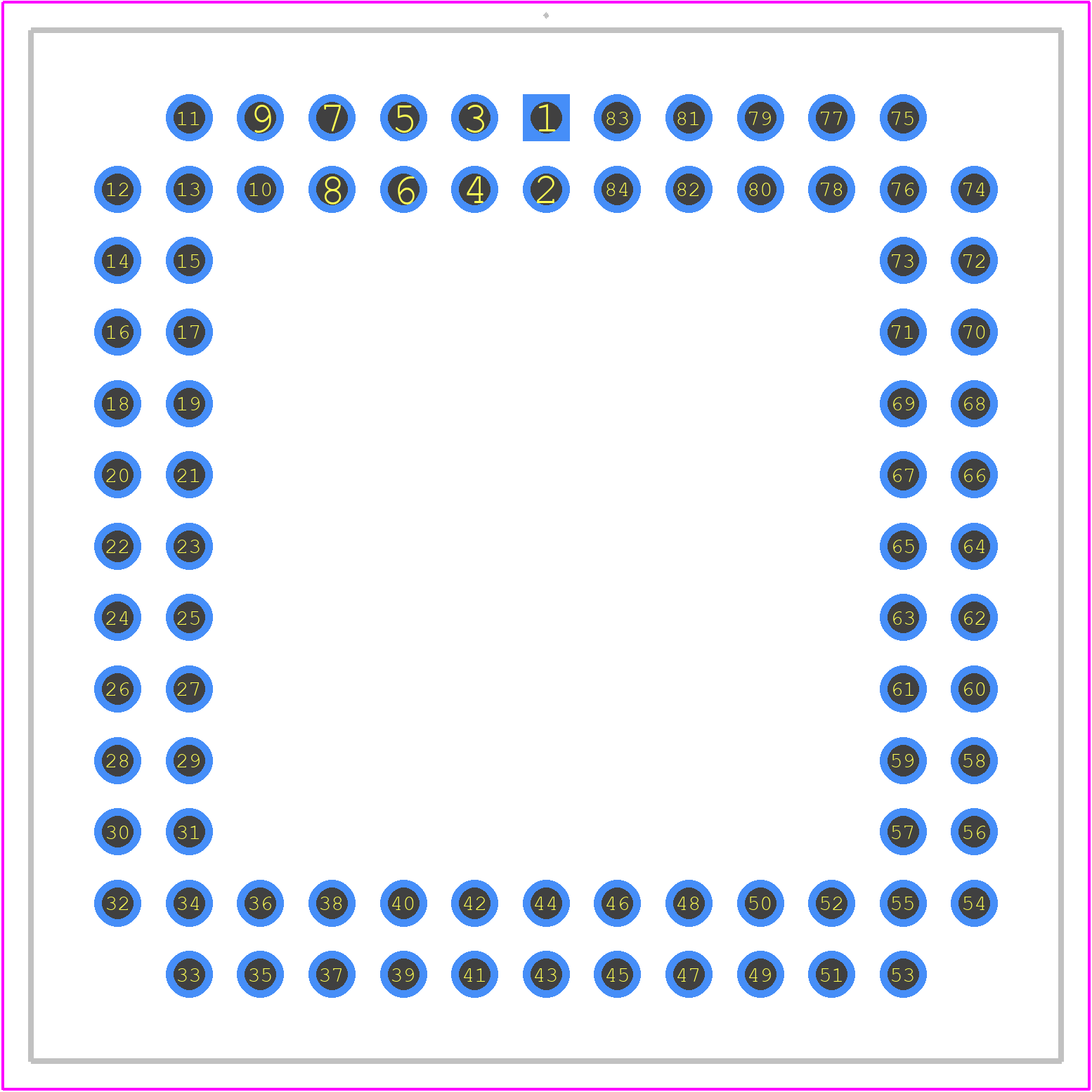

PCB Footprints
PLCC-84-AT - Adam Tech PCB footprint - Other - Other - PLCC-84-AT-2
click to zoom
3D Models
PLCC-84-AT - Adam Tech - 3D model - Other - PLCC-84-AT-2
click to zoom

PLCC-84-AT Details

  • Manufacturer Part Number:

    PLCC-84-AT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    6.83

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    1.445 inch

  • Body Depth:

    0.318 inch

  • Body Length:

    1.445 inch

  • Contact Configuration:

    21X21

  • Contact Finish Mating:

    TIN OVER COPPER

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    PLCC84

  • Dielectric Withstanding Voltage:

    500VAC V

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    84

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER

PLCC-84-AT Frequently Asked Questions (FAQs)

  • The recommended storage condition for PLCC-84-AT is in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 125°C and humidity below 80%.
  • Yes, PLCC-84-AT is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the component to ensure reliable operation.
  • To prevent electrostatic discharge (ESD) damage, handle PLCC-84-AT components with an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded.
  • The maximum operating temperature range for PLCC-84-AT is -40°C to 125°C, but it's recommended to operate within the specified temperature range for optimal performance and reliability.
  • While PLCC-84-AT is designed to operate in a wide range of environments, it's recommended to avoid operating in extremely humid environments (above 80% RH) to prevent moisture-related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PLCC-84-AT Overview

Use the download button to access the PLCC-84-AT schematic symbol, PCB footprint, and 3D model.
