ProTek Devices recommends a PCB layout with a solid ground plane, short lead lengths, and a low-impedance path for the TVS diode to ensure effective ESD protection and minimal signal distortion.
Yes, the PLR0524-T7 is suitable for high-frequency applications up to 1 GHz due to its low capacitance (5pF) and low inductance, making it ideal for protecting high-speed data lines.
The PLR0524-T7 is designed to handle high surge currents (up to 5A) and can absorb repetitive ESD strikes without compromising its performance or reliability.
Yes, the PLR0524-T7 meets the requirements of the AEC-Q101 standard for automotive applications, ensuring its reliability and performance in harsh environments.
Yes, the PLR0524-T7 can be used in parallel with other ESD protection devices to provide additional protection for sensitive components, but ensure that the total capacitance and inductance of the combined devices do not compromise the signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLR0524-T7 Overview

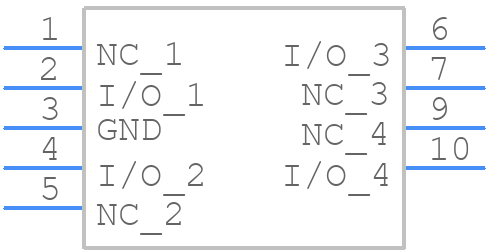

Use the download button to access the PLR0524-T7 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PLR05,
or try a keyword search, such as Transient Suppressors
