ProTek Devices recommends a PCB layout with a solid ground plane, short lead lengths, and a low-impedance path for the TVS diode to ensure optimal performance and ESD protection.
While the PLR3304-LF-T73 is rated for operation up to 150°C, it's essential to consider the derating of the device's electrical characteristics and the potential for thermal runaway in high-temperature applications. Consult with ProTek Devices' application engineers for specific guidance.
The PLR3304-LF-T73 is designed to withstand multiple ESD strikes, but the device's performance may degrade over time. ProTek Devices recommends following the IEC 61000-4-2 standard for ESD testing and consulting with their application engineers for specific guidance on repetitive strike scenarios.
Yes, the PLR3304-LF-T73 can be used in conjunction with other ESD protection devices, but it's essential to ensure that the devices are properly coordinated to avoid conflicts and ensure optimal system-level ESD protection. Consult with ProTek Devices' application engineers for specific guidance.
ProTek Devices recommends storing the PLR3304-LF-T73 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the devices by the body, avoiding touching the leads or electrical contacts to prevent damage or contamination.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PLR3304-LF-T73 Overview

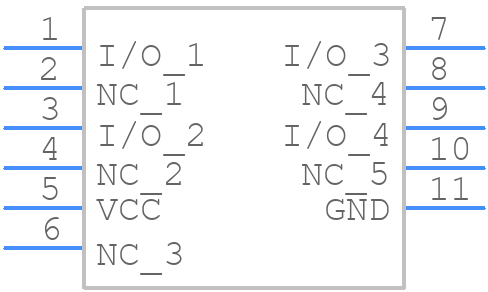

Use the download button to access the PLR3304-LF-T73 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PLR33,
or try a keyword search, such as Transient Suppressors
