PM-DB2706 - Holt Integrated Circuits Inc.

Description: Datacom Transformer, DATA BUS INTERFACE Application(s), 1:1 L12.7XB8.89XH6.35 (mm) -55°C to +130°C

Download PM-DB2706 Model

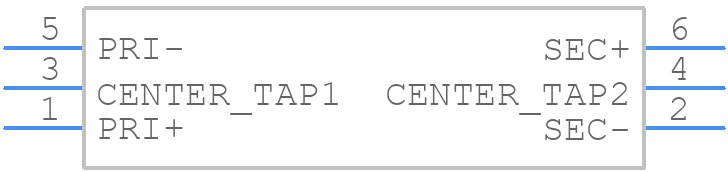

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

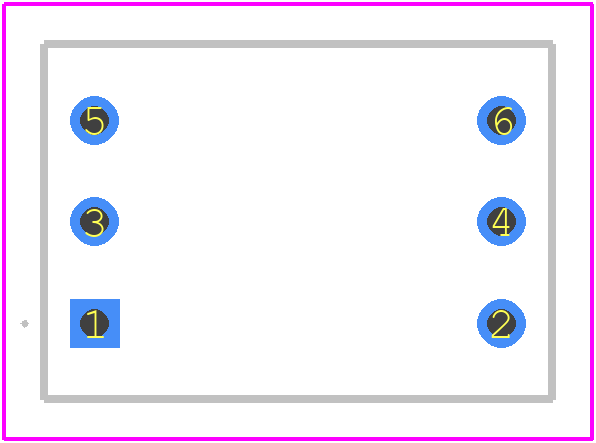

PCB Footprints
PM-DB2706 - Holt Integrated Circuits Inc. PCB footprint - Other - Other - 8.89 x 12.7 x 6.35mm
click to zoom
3D Models
PM-DB2706 - Holt Integrated Circuits Inc.  - 3D model - Other - 8.89 x 12.7 x 6.35mm
click to zoom

PM-DB2706 Details

  • Manufacturer Part Number:

    PM-DB2706

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Holt Integrated Circuits Inc

  • YTEOL:

    10

  • Application:

    DATA BUS INTERFACE

  • Approvals:

    MIL-STD-1553

  • Height:

    6.35 mm

  • JESD-609 Code:

    e0

  • Length:

    8.89 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Functions:

    1

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -55 °C

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    12.7 mm

PM-DB2706 Frequently Asked Questions (FAQs)

  • Holt Integrated Circuits recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A minimum of 1 oz copper thickness is recommended for the top and bottom layers.
  • Holt recommends following the recommended PCB mounting and screw torque specifications, and using a conformal coating to protect the device from moisture and contaminants. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to secure the device to the PCB.
  • The built-in voltage regulator is designed to provide a stable 3.3V output, but it has a limited current capacity of 100mA. If your design requires more current, an external voltage regulator is recommended. Additionally, the regulator has a dropout voltage of 1.5V, so ensure that the input voltage is sufficient to maintain regulation.
  • Check the SPI clock frequency and ensure it is within the recommended range of 100 kHz to 1 MHz. Verify that the correct SPI mode is selected (Mode 0 or Mode 3) and that the slave select signal is properly asserted. Use a logic analyzer or oscilloscope to inspect the SPI signals and verify that the device is responding correctly.
  • Holt recommends using a secure firmware update mechanism, such as a cryptographic hash-based verification scheme, to ensure the integrity of the firmware. Firmware updates should be performed as needed, typically when new features or bug fixes are released. It is recommended to update the firmware during manufacturing or during scheduled maintenance periods to minimize downtime.
