PM2110-102K-RC - Bourns

Description: Bourns 1000 μH ±10% Iron Power Inductor, Max SRF:1kHz, 1.9A Idc, 244mΩ Rdc PM2110

Download PM2110-102K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

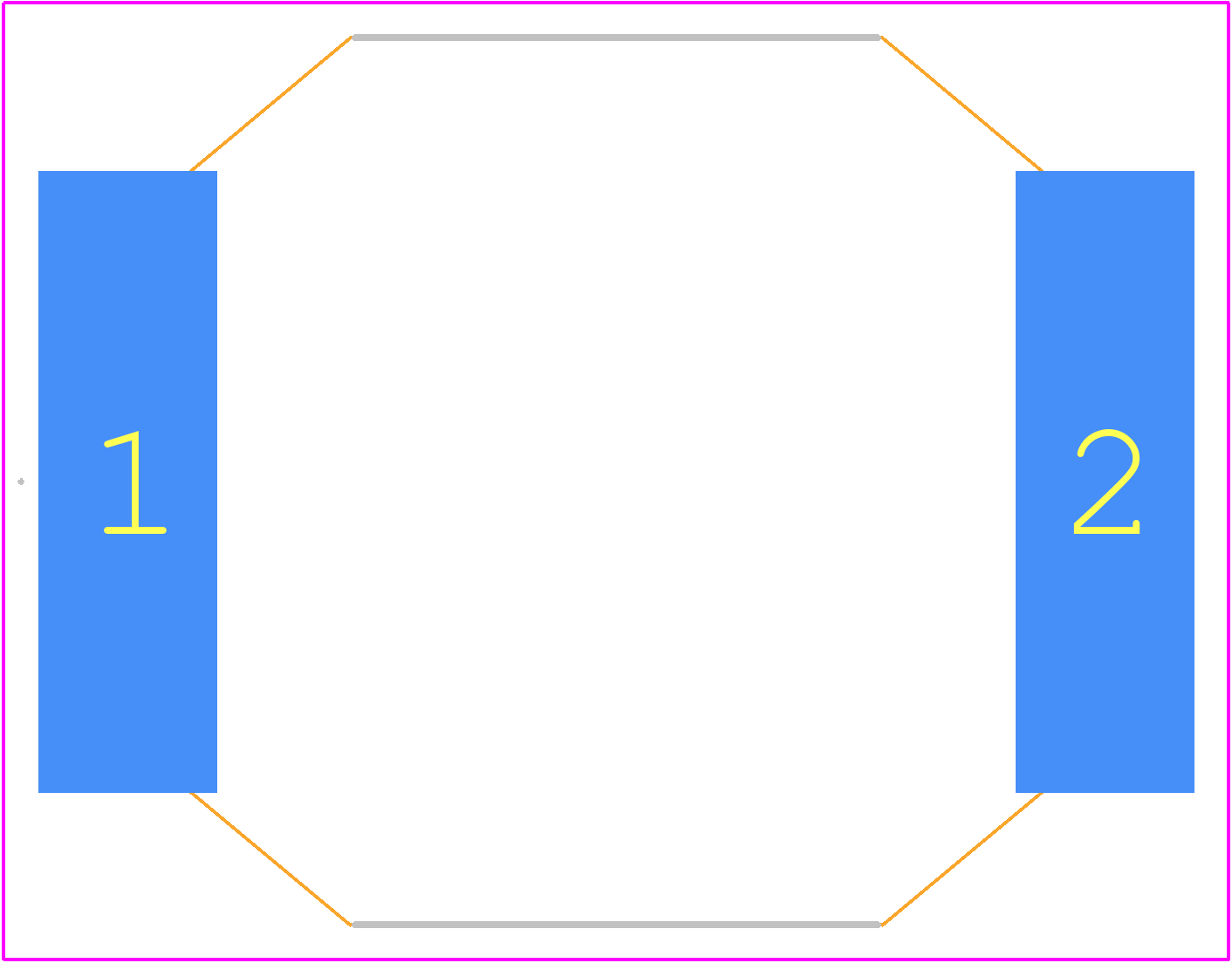

PM2110-102K-RC - Bourns PCB footprint - Other - Other - PM2110-102K-RC-2
click to zoom
3D Models
PM2110-102K-RC - Bourns  - 3D model - Other - PM2110-102K-RC-2
click to zoom

PM2110-102K-RC Details

  • Manufacturer Part Number:

    PM2110-102K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Honduras

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Case/Size Code:

    1210

  • Construction:

    Toroidal Core

  • Core Material:

    IRON

  • DC Resistance:

    0.244 Ω

  • Inductance-Nom (L):

    1000 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    15.24 mm

  • Package Length:

    30.5 mm

  • Package Style:

    SMT

  • Package Width:

    25.4 mm

  • Packing Method:

    Box

  • Rated Current-Max:

    1.9 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

PM2110-102K-RC Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
  • To minimize the impact of SRF, ensure the inductor is used below its SRF, and consider adding a decoupling capacitor to filter out high-frequency noise. Additionally, use a shielded inductor or add a shield to the PCB to reduce EMI.
  • While the datasheet specifies a temperature range, it's essential to consider the derating curves for inductance and current handling at higher temperatures. Consult Bourns' application notes for guidance on temperature derating.
  • Consider factors such as the target inductance value, current rating, and DC resistance (DCR) when selecting an inductor. Use Bourns' online tools and calculators to determine the optimal inductor value for your specific application.
  • Yes, follow proper storage and handling guidelines to prevent damage to the inductor. Store them in a dry, cool place, away from direct sunlight and moisture. Handle them by the body, avoiding touching the leads or core to prevent damage.
