PM2120-121K-RC - Bourns

Description: Fixed Inductors 120uH 10%

Download PM2120-121K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PM2120-121K-RC - Bourns - PCB symbol
click to zoom
PCB Footprints

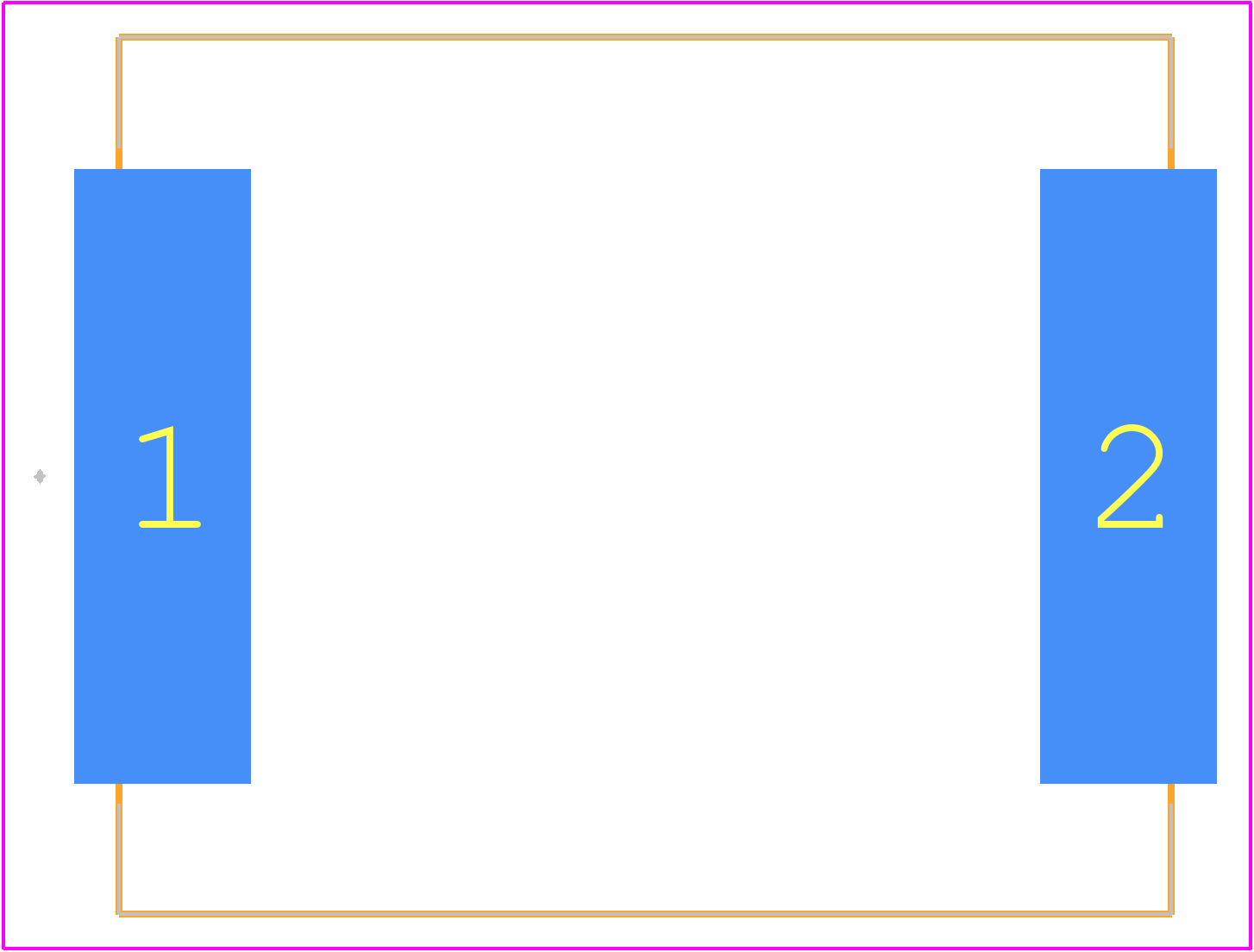

PM2120-121K-RC - Bourns PCB footprint - Other - Other - PM2120-121K-RC-2
click to zoom
3D Models
PM2120-121K-RC - Bourns - 3D model - Other - PM2120-121K-RC-2
click to zoom

PM2120-121K-RC Details

  • Manufacturer Part Number:

    PM2120-121K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Honduras

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Case/Size Code:

    1210

  • Construction:

    Rectangular

  • Core Material:

    IRON

  • DC Resistance:

    0.039 Ω

  • Inductance-Nom (L):

    120 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    22.1 mm

  • Package Length:

    30.5 mm

  • Package Style:

    SMT

  • Package Width:

    25.4 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    5.8 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

PM2120-121K-RC Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, low EMI, and high reliability.
  • The PM2120-121K-RC is designed to provide excellent high-frequency noise suppression and EMI filtering. The device's internal construction and materials are optimized to minimize radiation and susceptibility to electromagnetic interference.
  • The PM2120-121K-RC is rated for operation from -40°C to +125°C. However, it's essential to consider derating and thermal management to ensure reliable operation over the device's lifetime.
  • Yes, the PM2120-121K-RC is designed and manufactured to meet the requirements of high-reliability and safety-critical applications. Bourns provides additional documentation and support for these types of applications.
  • Lead times and availability may vary depending on the region, distributor, and quantity. It's recommended to check with authorized distributors or Bourns' customer support for the most up-to-date information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM2120-121K-RC Overview

Use the download button to access the PM2120-121K-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM212, or try a keyword search, such as Fixed Inductors
