PM2120-271K-RC footprint, schematic symbol and 3D model by Bourns

Symbol

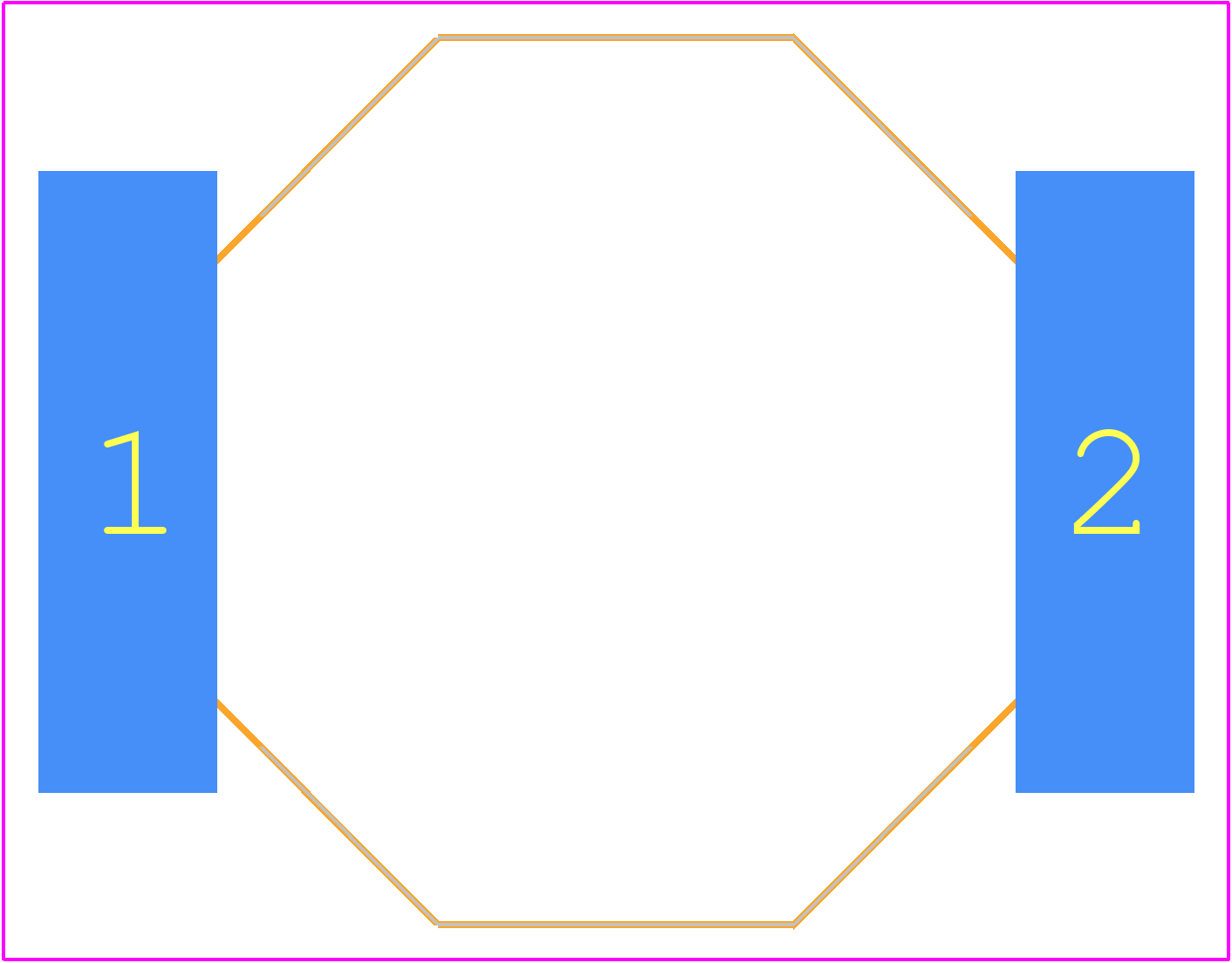

PCB Footprints

3D Models

PM2120-271K-RC Details

Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
To ensure reliable soldering, Bourns recommends using a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 180°C to 200°C. The component should be soldered within 3 seconds to 5 seconds to prevent thermal damage.
Although the datasheet specifies an operating temperature range of -40°C to 125°C, Bourns recommends derating the component's power rating by 1.5% per degree Celsius above 85°C to ensure reliable operation.
Yes, the PM2120-271K-RC is designed to withstand high-vibration environments. However, Bourns recommends securing the component to the PCB using a suitable adhesive or mechanical fastening method to prevent mechanical stress and ensure reliable operation.
Bourns recommends handling the PM2120-271K-RC with ESD-protective equipment and following proper ESD-handling procedures to prevent damage. The component should be stored in an ESD-protective package or bag when not in use.

Expert Contribution

System Verified

Community Approved

Use the download button to access the PM2120-271K-RC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PM212, or try a keyword search, such as Fixed Inductors
