Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The PM2120-331K-RC is designed to provide excellent high-frequency noise suppression and EMI filtering. The device's internal construction and materials are optimized to reduce electromagnetic interference and radio-frequency interference (RFI). However, additional external filtering or shielding may be necessary depending on the specific application and environment.
While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +100°C for optimal performance and longevity.
The PM2120-331K-RC is designed to meet the requirements of various industrial and automotive applications, including those with high-vibration or high-shock environments. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
Yes, it's essential to follow proper storage and handling procedures to prevent damage to the device. Store the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the devices by the body, avoiding touching the leads or electrical contacts to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PM2120-331K-RC Overview

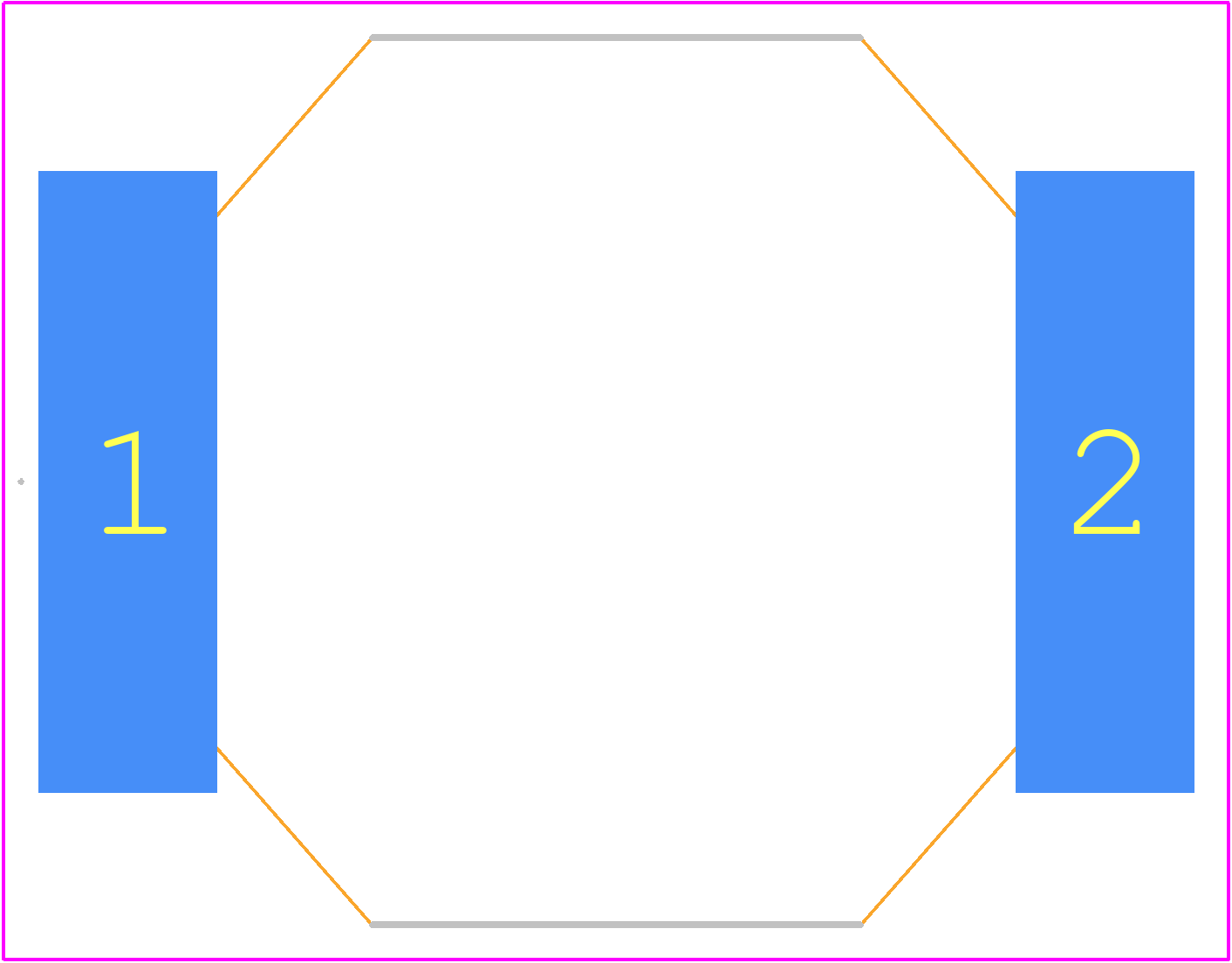

Use the download button to access the PM2120-331K-RC schematic symbol, PCB footprint, and 3D model.
