PM2120-561K-RC - Bourns

Description: Fixed Inductors 560uH 10%

Download PM2120-561K-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

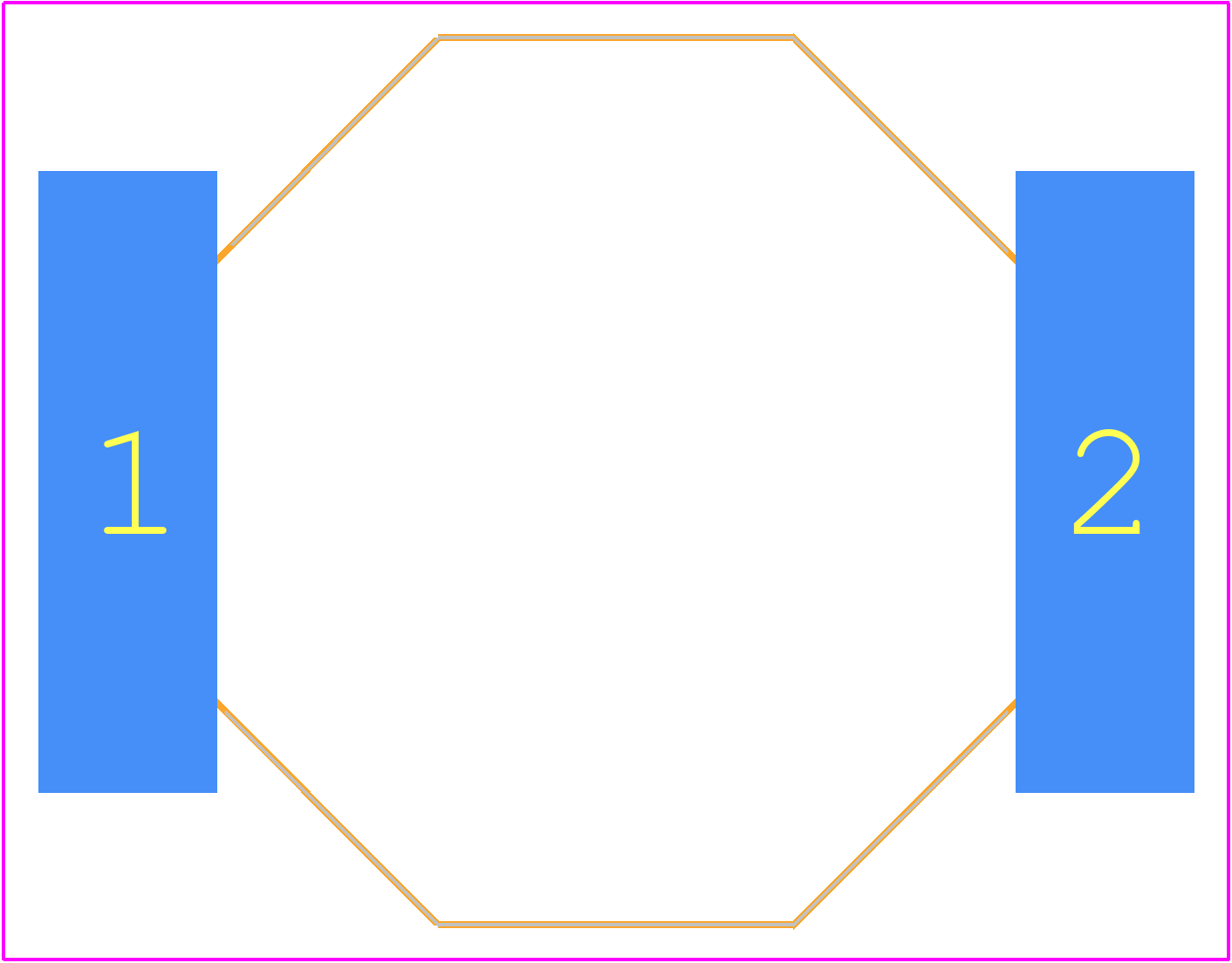

PM2120-561K-RC - Bourns PCB footprint - Other - Other - PM2120-561K-RC-2
click to zoom
3D Models
PM2120-561K-RC - Bourns  - 3D model - Other - PM2120-561K-RC-2
click to zoom

PM2120-561K-RC Details

  • Manufacturer Part Number:

    PM2120-561K-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Honduras

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Case/Size Code:

    1210

  • Construction:

    Rectangular

  • Core Material:

    IRON

  • DC Resistance:

    0.13 Ω

  • Inductance-Nom (L):

    560 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    21.59 mm

  • Package Length:

    30.5 mm

  • Package Style:

    SMT

  • Package Width:

    25.4 mm

  • Packing Method:

    Bulk

  • Rated Current-Max:

    3.2 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    10%

PM2120-561K-RC Frequently Asked Questions (FAQs)

  • Bourns provides a recommended PCB layout and land pattern in their application note AN164, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The PM2120-561K-RC is designed to provide excellent high-frequency noise and EMI attenuation due to its ferrite core and optimized winding design. However, additional shielding and filtering may be necessary depending on the specific application and environment.
  • While the datasheet specifies a temperature range of -40°C to +125°C, it's essential to note that the inductor's performance may degrade at higher temperatures. It's recommended to derate the inductor's current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation.
  • Yes, the PM2120-561K-RC is designed to withstand high-vibration and high-shock environments. However, it's crucial to ensure that the inductor is properly secured to the PCB and that the PCB is designed to withstand the expected mechanical stresses.
  • To select the correct inductor value, consider factors such as the operating frequency, current requirements, and desired impedance. Bourns provides an inductor selection guide on their website, which can help engineers choose the optimal inductor for their application.
